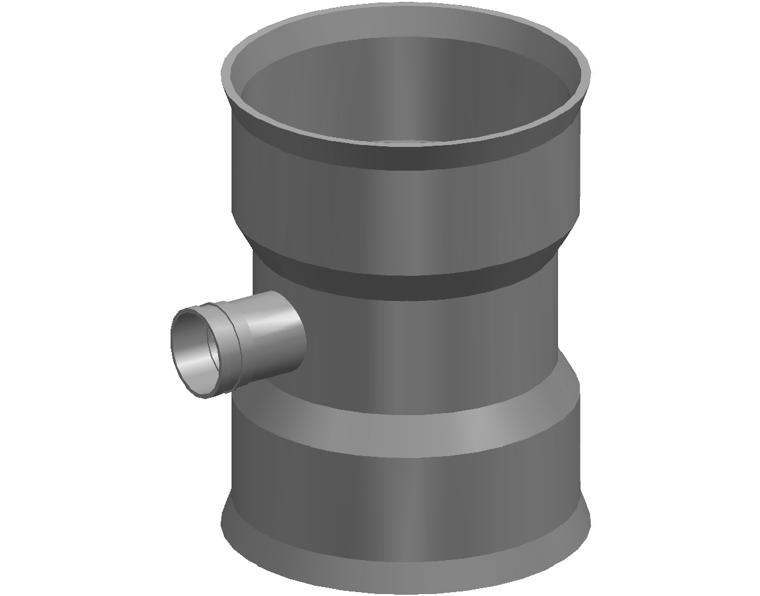

DN375 x dn100 BlackMAX® Reducing Tee FFF x DWV SWJ Branch (PVC Fab)

System:
PP Drainage & Sewer Systems
Sub System:
Blackmax
Product Code:
GWR25371090S

Stormwater drainage, Road drainage, Road culverts, Retention systems, Low head irrigation

Enquire

Features

  • Australian Made
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth internal bore for hydraulic performance
  • Low embodied energy for environmental benefits

Additional Information

Requires 2 x DN375 BlackMAX® Rubber Ring Iplex Code: GERSEW375

Product properties

Size
375MM
Rating
SN8 / Non Pressure
Length
BLANK
Degree
90
Primary Material
PVC
UOM
EACH
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with white internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant
22
Allowable Operating Temperature - Degrees
(Up to 50°C) - Re-rating is applied >30°C
Socket Deflection
up to 1°
Markings
Manufactures name and/or registered trademark > Nominal Size > Stiffness> PVC > Date of Manufacture > Place of Manufacture

Product dimensions

Size
375MM
Weight
10.00

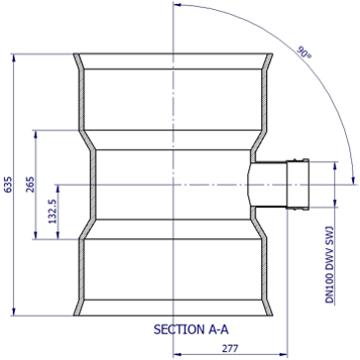

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
