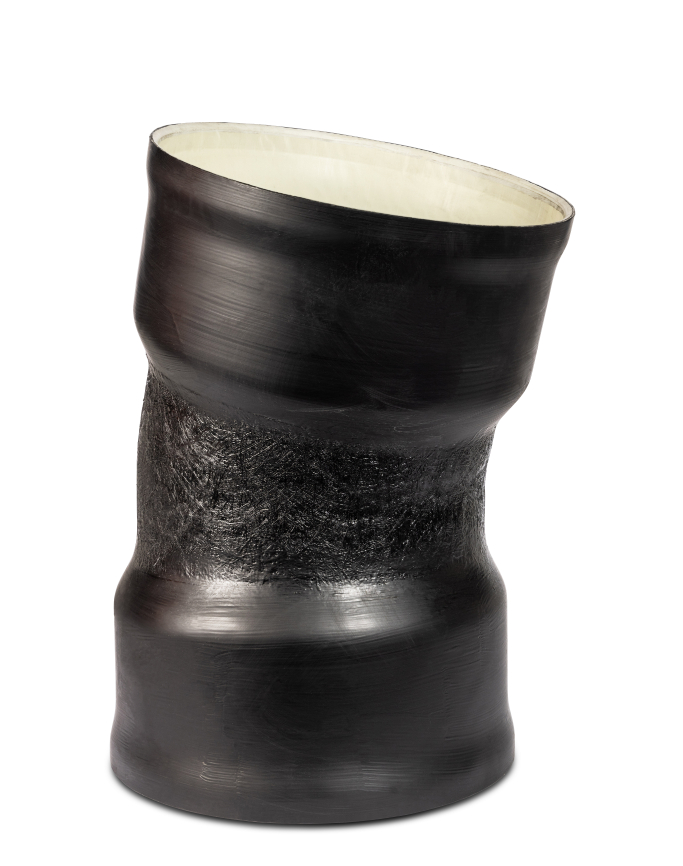

DN300 x 15° BlackMax® Bend FF RRJ (PVC Fab)

Enquire

Enquire



GWR0230015

Overview
  • Australian Made
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth internal bore for hydraulic performance
  • Low embodied energy for environmental benefits
Additional Information Requires 2 x DN300 BlackMAX® Rubber Ring Iplex Code: GERSEW300
Product Properties
Size 300MM
Rating SN8 / Non Pressure
Length BLANK
Degree 15
Primary Material PVC
UOM EACH
Joint Type RRJ
Rubber Ring Material Styrene Butadiene Rubber (SBR)
Colour Black external wall with white internal bore
Minimum Cover Depth SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant 28
Allowable Operating Temperature - Degrees Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection up to 2°
Markings Manufactures name and/or registered trademark > Nominal Size > Stiffness> PVC > Date of Manufacture > Place of Manufacture
Dimensions
Size 300MM
Weight 8
Standards & Accreditations
Product Standard AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
POP Documents PIPA Guidelines & Notes (iplex.com.au)
