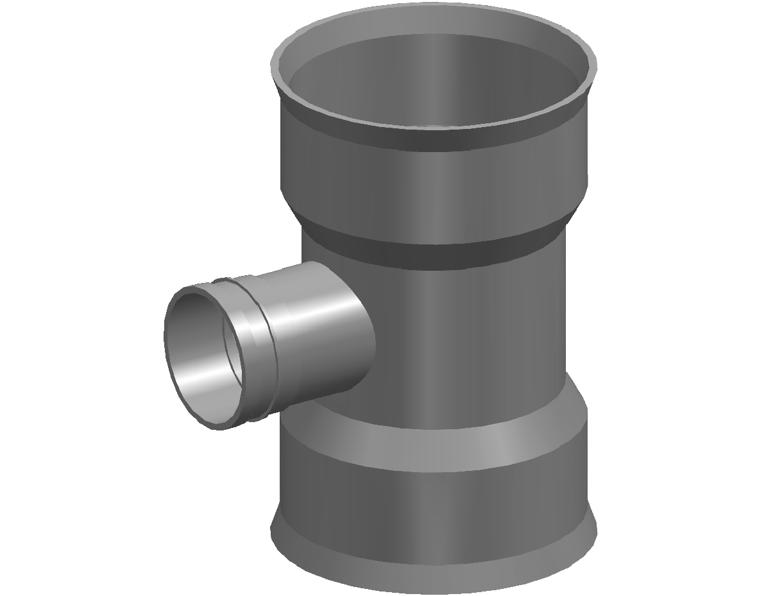

DN300 x dn150 BlackMax® Reducing Tee FFF DWV SWJ Branch (PVC Fab)
GWR25301590S
Overview
- Australian Made
- Abrasion and Corrosion Resistant
- Treet root intrusion resistance
- Smooth internal bore for hydraulic performance
- Low embodied energy for environmental benefits
Additional Information
Requires 2 x DN300 BlackMAX® Rubber Ring Iplex Code: GERSEW300
Product Properties
Size
300MM
Rating
SN8 / Non Pressure
Length
BLANK
Degree
90
Primary Material
PVC
UOM
EACH
Joint Type
RRJ & SWJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with white internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant
28
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection
up to 2°
Markings
Manufactures name and/or registered trademark > Nominal Size > Stiffness> PVC > Date of Manufacture > Place of Manufacture

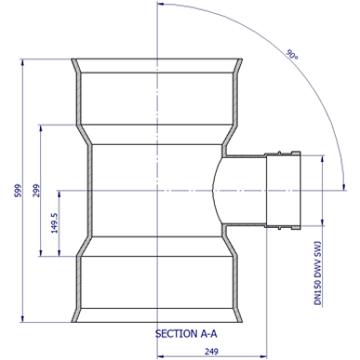

Dimensions
Standards & Accreditations
Product Standard
AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
