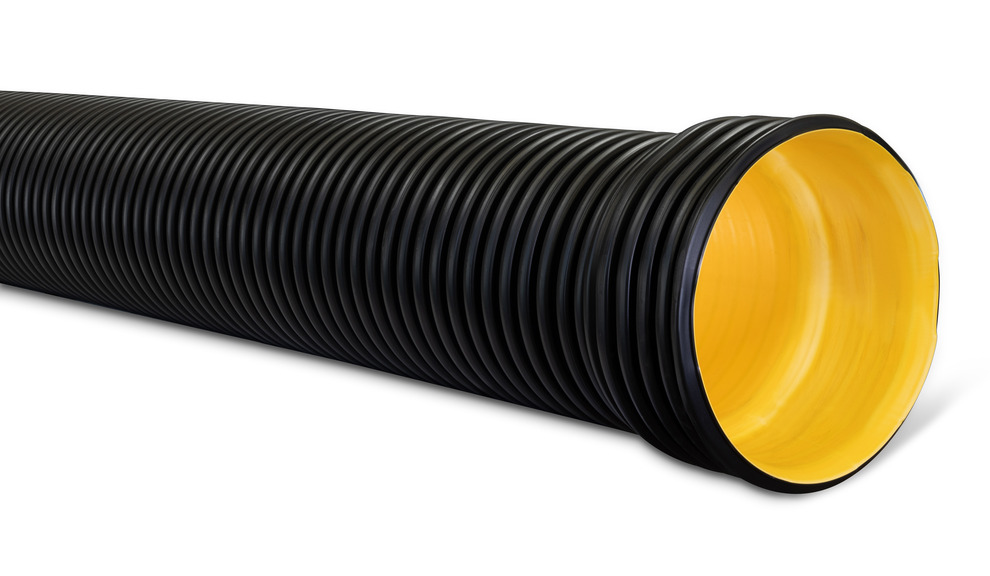

BlackMax® PP Pipe SN8 300 x 6 m RRJ Black with yellow liner

GR8300

BlackMax® PP Pipe SN8 300 x 6 m RRJ Black with yellow liner

Enquire Download Product Sheet
Enquire
Overview Product Properties Mechanical Properties Thermal Properties Dimensions Standards & Accreditations

Quick Menu

Overview

  • Australian made
  • Recyclable
  • Low embodied energy
  • Corrosion resistance
  • Abrasion resistance
  • Lightweight
  • Toughness
  • Watertight RRJ
  • Resistance to root intrusion
  • Smooth internal bore
  • Hydraulic performance
Additional Information Requires DN300 Rubber Ring Iplex Code: GERSEW300
Product Data Sheet Artboard View
CAD PDF Artboard View

Product Properties

Size/Diameter 300 mm
Rating Non Pressure
Length 6.0 m
Primary Material POLYPROPYLENE
Joint Type RRJ
Rubber Ring Material Styrene Butadiene Rubber (SBR)
Colour Black with yellow internal liner
Minimum Cover Depth Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant 28
Allowable Operating Temperature - Degrees Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Socket Deflection up to 2°
Maximum Diametric Deflection - 50yrs 0.075
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.9 m
Maximum Support Spacing of Pipe Vertical 3.8 m
Markings Iplex Pipelines, DN300, SN8, PP, Date of Manufacture, BlackMax® x 6 m, GR8300

Mechanical Properties

Density - Specific Gravity 0.9 kg/m3
Yield Strain 0.06
Tensile Modulus 31 MPa
Hardness Shore D 60
Poissons Ratio 0.45
Ring Bending Modulus - 3mins 1300 MPa
Ring Bending Modulus - 50yrs 342 MPa

Thermal Properties

Coefficient of Thermal Expansion 15 x 10⁻⁵ / ℃
Thermal Conductivity 0.22W/m.K
Specific Heat 1920 J/kg/°C
Vicat Softening Temperature 95°C
Flammability Flammable

Dimensions

Size/Diameter 300 mm
Weight 31.1 kg
Crate Quantity 6
Crate Weight 212.4 kg
Wall Thickness 2.0 mm
Socket Depth 147 mm
Witness Mark Detail 5th Rib
Socket Length 155 mm

Standards & Accreditations

Product Standard AS/NZS 5065
Product Approvals and Appraisals StandardsMark Certification SMKP20603
Warranty I Year
