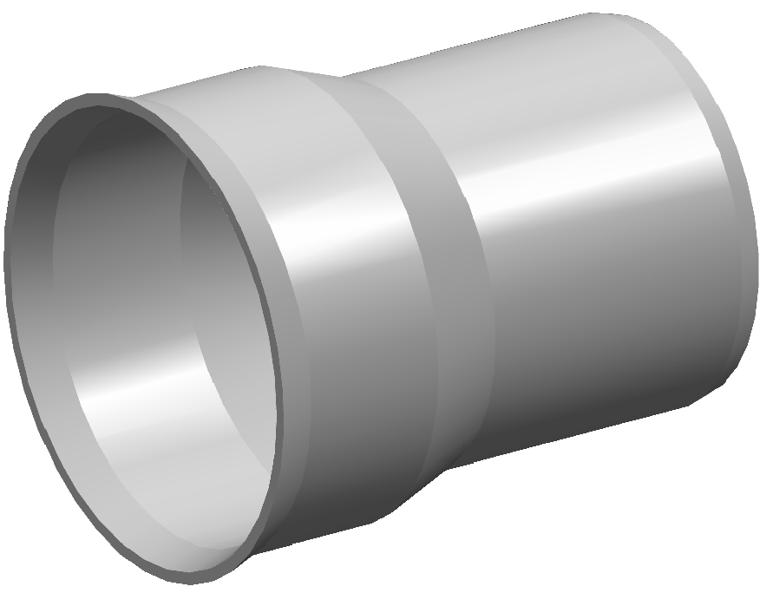

DN300 BlackMAX® Adaptor FM RRJ x DWV SP (PVC Fab)

System:
PP Drainage & Sewer Systems
Sub System:
Blackmax
Product Code:
GWR603030

Stormwater drainage, Road drainage, Road culverts, Retention systems, Low head irrigation

Enquire

Features

  • Australian Made
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth internal bore for hydraulic performance
  • Low embodied energy for environmental benefits

Additional Information

Requires 1 x DN300 BlackMAX® Rubber Ring Iplex Code: GERSEW300 / Used to adapt DN300 BlackMAX® pipe to dn300 DWV PVC pipe or fitting with a Socket end

Product properties

Size
300MM
Rating
Non Pressure
Length
BLANK
Primary Material
PVC
UOM
EACH
Joint Type
RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black / White
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant
28
Allowable Operating Temperature - Degrees
(Up to 50°C) - Re-rating is applied >30°C
Socket Deflection
up to 1°
Markings
Manufactures name and/or registered trademark > Nominal Size > PVC > Date of Manufacture > Place of Manufacture

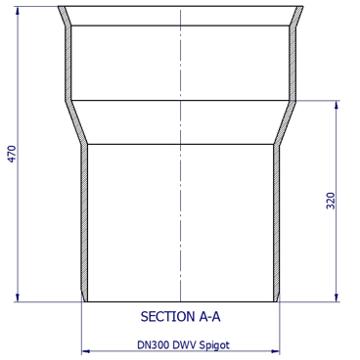

Product dimensions

Size
300MM
Weight
7.50
CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
