GWR25221090S

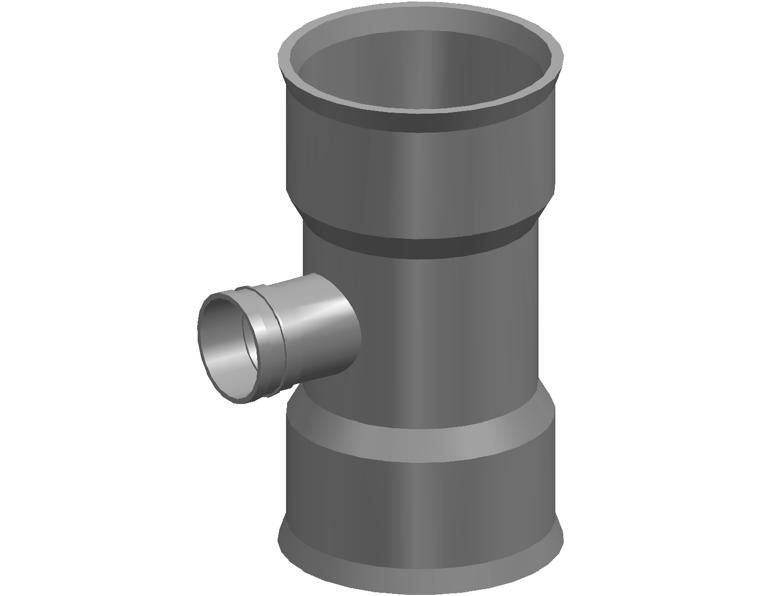

BlackMax® PVC Reducing Tee DN225 x DN100 FFF Max RRJ x DWV SWJ Black/White
Quick Menu
Overview
Product Properties
Size/Diameter
225 mm
Rating
Non Pressure
Degree
90°
Primary Material
PVC
Joint Type
RRJ & SWJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with white internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Socket Deflection
up to 2°
Markings
Iplex > BlackMax® > Reducing Tee > DN225 RRJ x DN100 DWV SWJ x 90° > PVC > Date of Manufacture > GWR25221090S
Mechanical Properties
Density - Specific Gravity
1.45
kg/m3

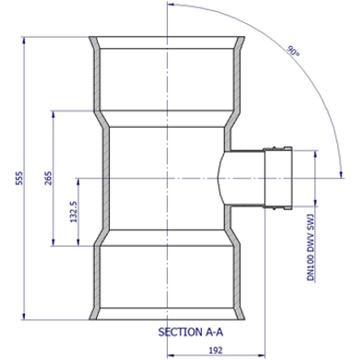

Dimensions
Size/Diameter
225 mm
Weight
5.5 kg
Standards & Accreditations
Product Standard
AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
