DN225 BlackMAX® Cap RRJ (PP Fab)

System:
PP Drainage & Sewer Systems
Sub System:
Blackmax
Product Code:
GR105225

Stormwater drainage, Road drainage, Road culverts, Retention systems, Low head irrigation

Features

  • Australian Made
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth internal bore for hydraulic performance
  • Low embodied energy for environmental benefits

Additional Information

Requires 1 x DN225 BlackMAX® Rubber Ring Iplex Code: GERSEW225

Product properties

Size
225MM
Rating
Non Pressure
Length
BLANK
Primary Material
POLYPROPYLENE
UOM
EACH
Joint Type
RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with yellow internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant
36
Allowable Operating Temperature - Degrees
(Up to 50°C) - Re-rating is applied >30°C
Socket Deflection
up to 1°
Markings
Manufacturers name and/or registered trademark > Nominal Size > PP > Date of Manufacture > Place of Manufacture

Product dimensions

Size
225MM
Weight
3.90

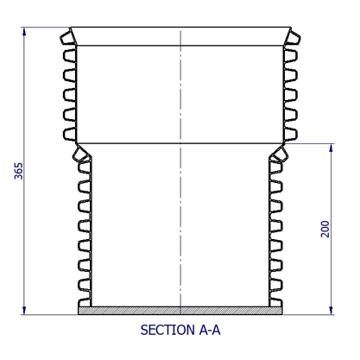

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
