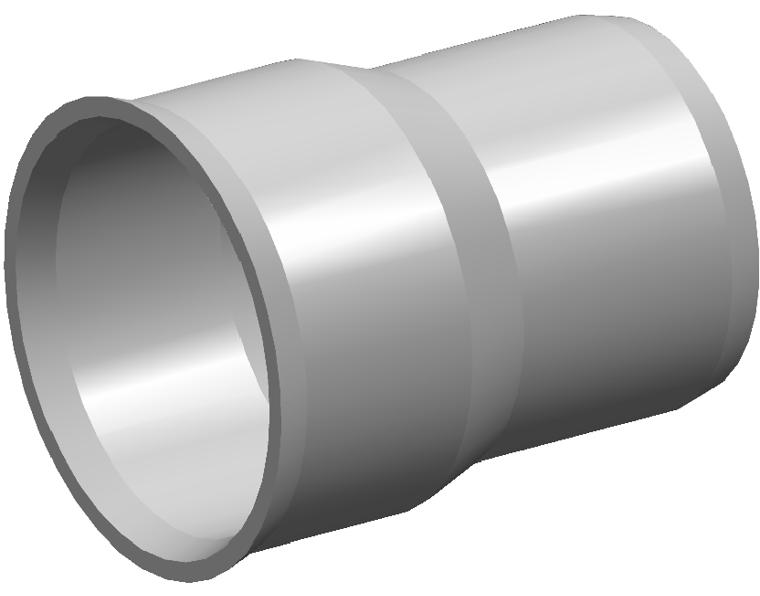

DN225 BlackMax® Drainage Pipe Adaptor FM RRJ x DWV SP (PVC Fab)

Enquire

Enquire



GWR602222

Overview
  • Australian Made
  • Abrasion and Corrosion Resistant
  • Treet root intrusion resistance
  • Smooth internal bore for hydraulic performance
  • Low embodied energy for environmental benefits
Additional Information Requires 1 x DN225 BlackMAX® Rubber Ring Iplex Code: GERSEW225 / Used to adapt DN225 BlackMAX® pipe to dn225 DWV PVC pipe or fitting with a Socket end
Product Properties
Size 225MM
Rating Non Pressure
Length BLANK
Primary Material PVC
UOM EACH
Joint Type RRJ
Rubber Ring Material Styrene Butadiene Rubber (SBR)
Colour Black / White
Minimum Cover Depth SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre-Iplex Lubricant 36
Allowable Operating Temperature - Degrees Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection up to 2°
Markings Manufactures name and/or registered trademark > Nominal Size > PVC > Date of Manufacture > Place of Manufacture

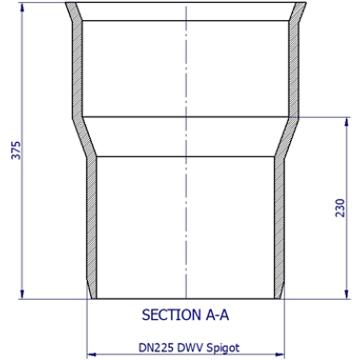

Dimensions
Size 225MM
Weight 3.22
225 BLK MAX ADAPTSC X PVC SPEC FAB
Standards & Accreditations
Product Standard AS/NZS1260 PVC-U pipes and fittings for drain, waste and vent applications' & 'AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
POP Documents PIPA Guidelines & Notes (iplex.com.au)
