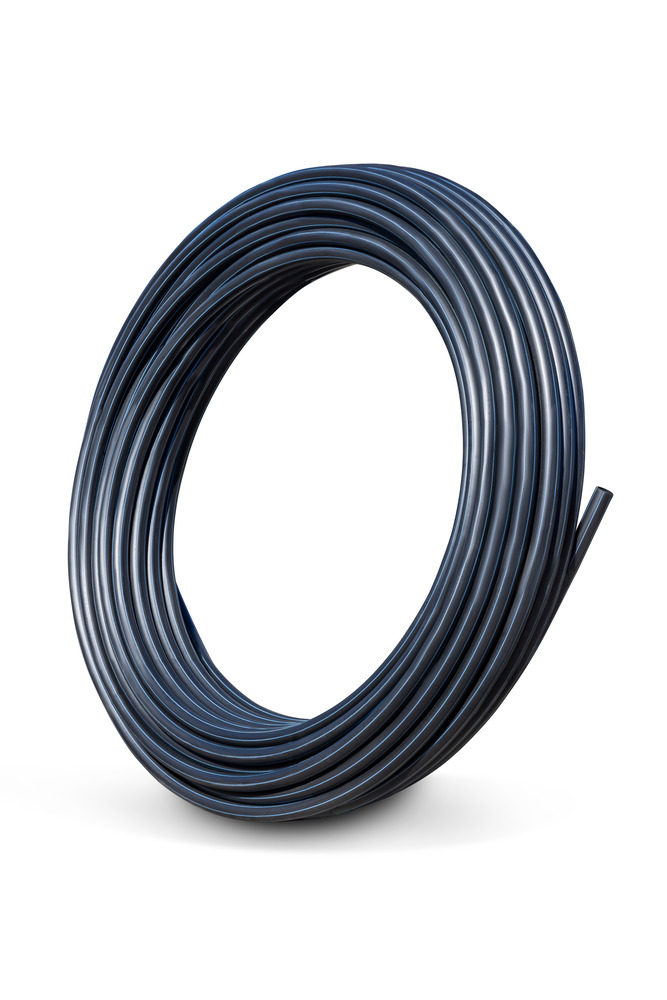

25 SDR13.6 POLY PE100 PIPEX100M BBL

Enquire

Enquire



PBH1225100

Overview
Product Properties
Size 25MM
Length 100M
Primary Material POLYETHYLENE
UOM COIL
Joint Type Electrofusion, compression, butt-weld, mechanical
Colour Black with blue stripe
Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius 1250 kPa @20℃
Minimum Radius of Curvature 21 (x DN) Ref: POP202 Nov2016
Unprotected UV Exposed 2 years in accordance with AS/NZS 2033:2008 "Installation of polyethylene pipe systems"
Maximum Support Spacing of Pipe Graded 0.35m (If longer spans required, refer Iplex Sales Engineer)
Maximum Support Spacing of Pipe Vertical 0.70m
Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE
Mechanical Properties
Ultimate Tensile Strength N/A
Yield Strain 10%
Yield Stress 25 MPa
Compressive Strength 32MPa
Tensile Modulus 900 MPa
Hardness Shore D 63
Poissons Ratio 0.4
Design Stress 8 MPa
Thermal Properties
Coefficient of Thermal Expansion 1.8 x 10-4/℃
Thermal Conductivity 0.38W/m.K
Specific Heat 1.9 kJ/kg.K ℃
Vicat Softening Temperature 116℃
Flammability Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability 13
Fire Index - Smoke Developed 3
Fire Index - Spread of Flame 7
Fire Index - Heat Evolved 6
Dimensions
Size 25MM
ID 21.0mm
Wall Thickness 1.9mm
Standards & Accreditations
Product Standard Manufactured to AS/NZS 4130 from resin complounds complying with AS/NZS 4131
