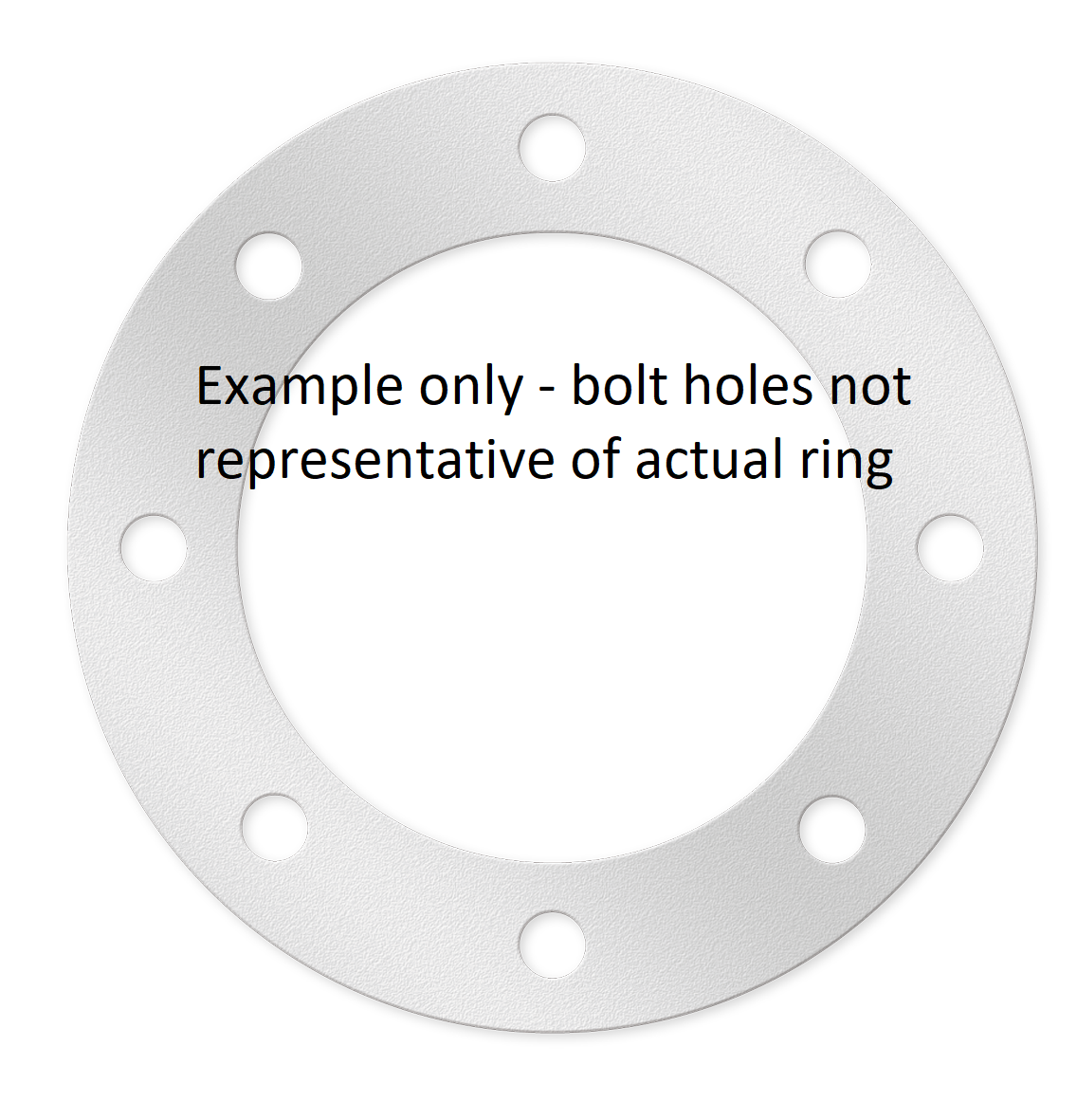

Backing Ring to Suit PE DN90mm ASME B16.5 ST/ST

PEBRA090SS

Backing Ring to Suit PE DN90mm ASME B16.5 ST/ST

Enquire
Enquire
Overview Product Properties Thermal Properties Dimensions Standards & Accreditations

Quick Menu

Overview

Technical Guide Artboard View

Product Properties

Size/Diameter 90 mm
Primary Material OTHER
Joint Type Flanged
Colour Silver
Allowable Operating Pressure - 20 Degrees Celsius 1250 kPa
Unprotected UV Exposed 99.9% UV stable (black only)

Thermal Properties

Flammability Non-Flammable

Dimensions

Size/Diameter 90 mm
Weight 3.4
Flange OD 23.9
Flange Thickness 23.9
Pitch Circle Diameter 152
Number of Bolt Holes 4
Bolt Hole Diameter 152 mm

Standards & Accreditations

Product Standard ASME Flange standard B16.5 'Forged Flanges'
Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf
