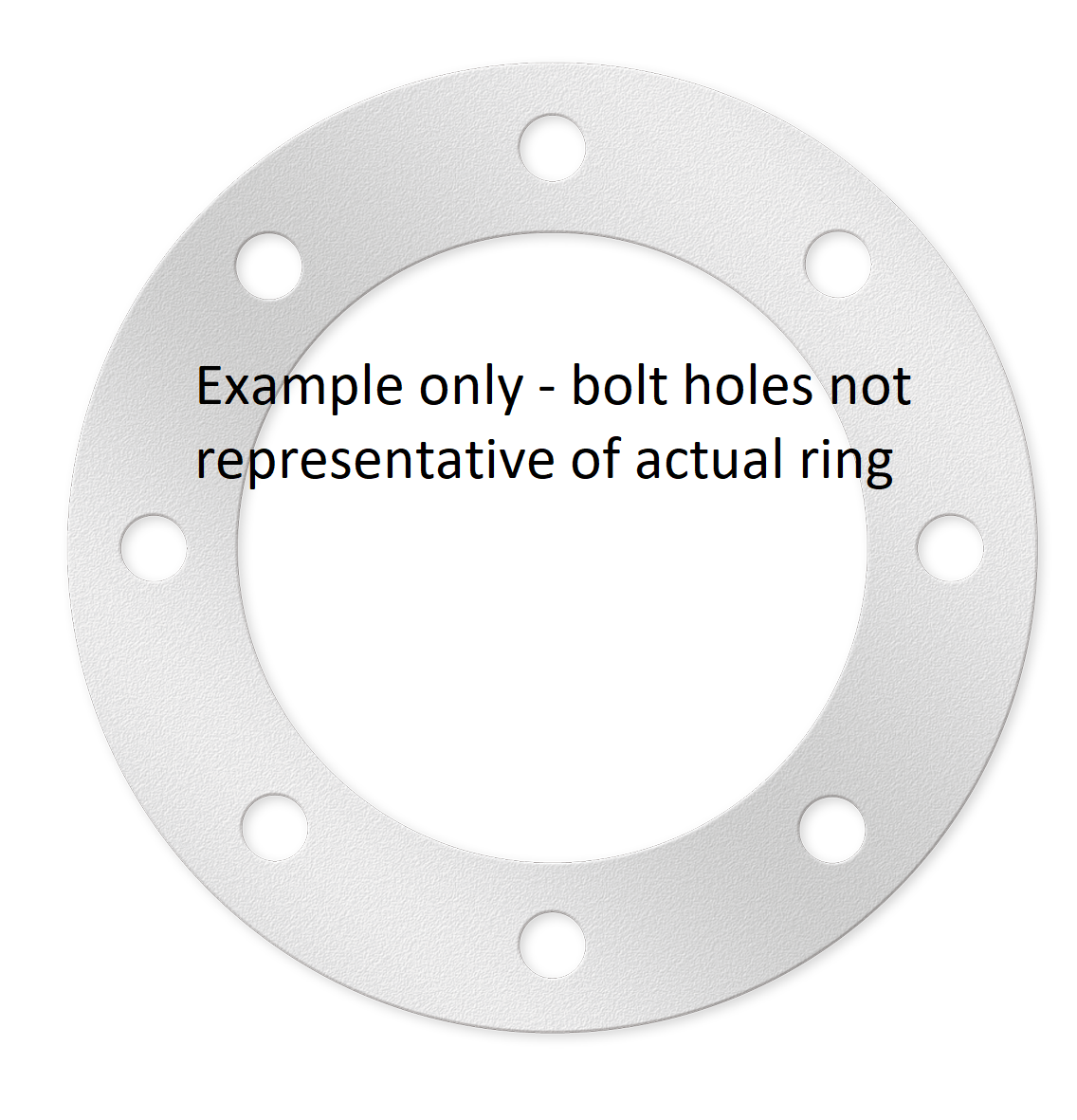

Backing Ring to Suit PE DN500mm AS2129 Table E Galv

PEBRE500

Backing Ring to Suit PE DN500mm AS2129 Table E Galv

Enquire
Enquire
Overview Product Properties Thermal Properties Dimensions Standards & Accreditations

Quick Menu

Overview

Technical Guide Artboard View

Product Properties

Size/Diameter 500 mm
Primary Material OTHER
Joint Type Flanged
Colour Silver
Allowable Operating Pressure - 20 Degrees Celsius 2000 kPa
Unprotected UV Exposed 99.9% UV stable (black only)

Thermal Properties

Flammability Non-Flammable

Dimensions

Size/Diameter 500 mm
Weight 48.5
Flange OD 705
Flange Thickness 38
Pitch Circle Diameter 641
Number of Bolt Holes 16
Bolt Hole Diameter 26 mm

Standards & Accreditations

Product Standard AS/NZS 2129 'Flanges for pipes, valves and fittings'
Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf
