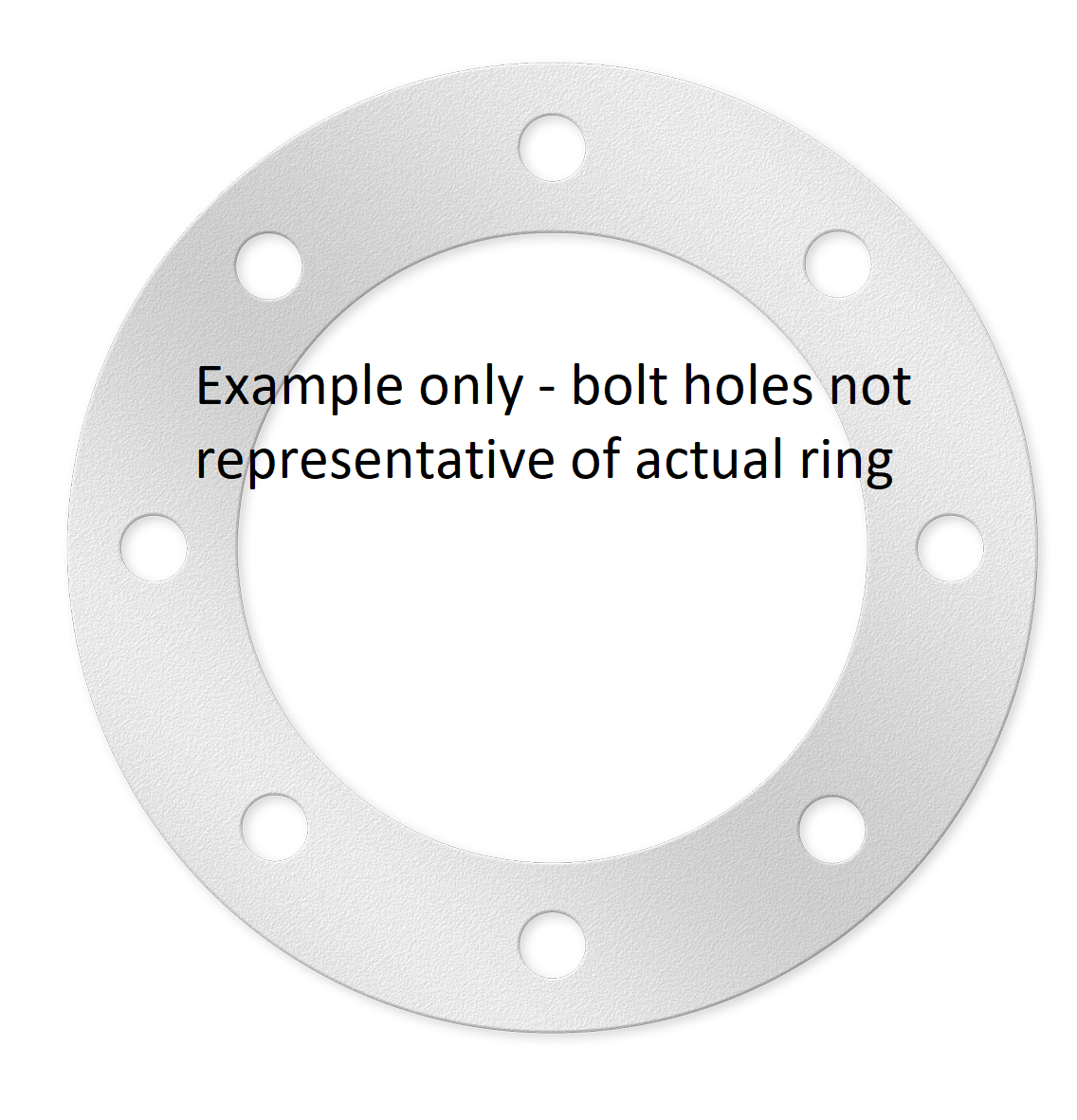

280 ANSI BACK RING GSA105 SPEC SUIT PE

System:
PE Systems
Sub System:
Electrofusion and Butt-Welded Fittings
Product Code:
PEBRA280A105

BACKING RING USED TO REINFORCE A POLYETHYLENE STUB FLANGE

Product properties

Size
280MM
Rating
PN19
Length
BLANK
UOM
EACH
Unprotected UV Exposed
99.9% UV stable (black only)
Product Certifications
ISO TYPE 5 - AMI 20303|WATERMARK WM20303|ISO TS29001|ISO9001 FM 597347.1|WSAA 1127 Part 1&2|
Industry Specific Names
BACK UP PLATE

Product dimensions

Size
280MM
Weight
14.4
Flange OD
30.2
Flange Thickness
30.2
Pitch Circle Diameter
362
Number of Bolt Holes
12
Bolt Hole Diameter
362
280X10IN ANSI BACKING RING GALVANISED STEEL TO SUIT PE
