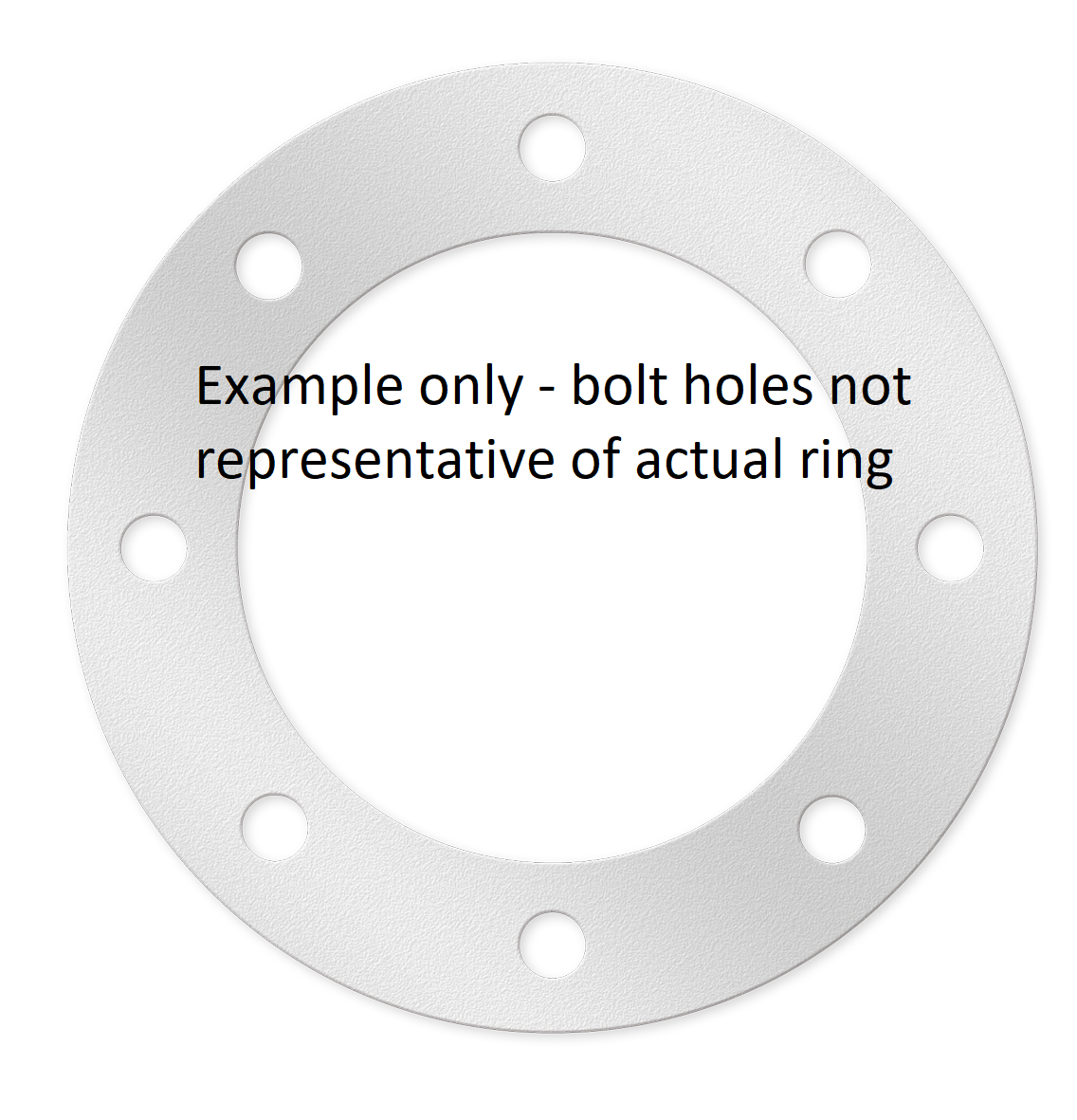

Backing Ring to Suit PE DN250mm ASME B16.5 Galv

PEBRA250

Backing Ring to Suit PE DN250mm ASME B16.5 Galv

Enquire
Enquire
Overview Product Properties Thermal Properties Dimensions Standards & Accreditations

Quick Menu

Overview

Technical Guide Artboard View

Product Properties

Size/Diameter 250 mm
Primary Material OTHER
Joint Type Flanged
Colour Silver
Allowable Operating Pressure - 20 Degrees Celsius 1600 kPa
Unprotected UV Exposed 99.9% UV stable (black only)

Thermal Properties

Flammability Non-Flammable

Dimensions

Size/Diameter 250 mm
Weight 15.1
Flange OD 30.2
Flange Thickness 30.2
Pitch Circle Diameter 362
Number of Bolt Holes 12
Bolt Hole Diameter 362 mm

Standards & Accreditations

Product Standard ASME Flange standard B16.5 'Forged Flanges'
Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf
