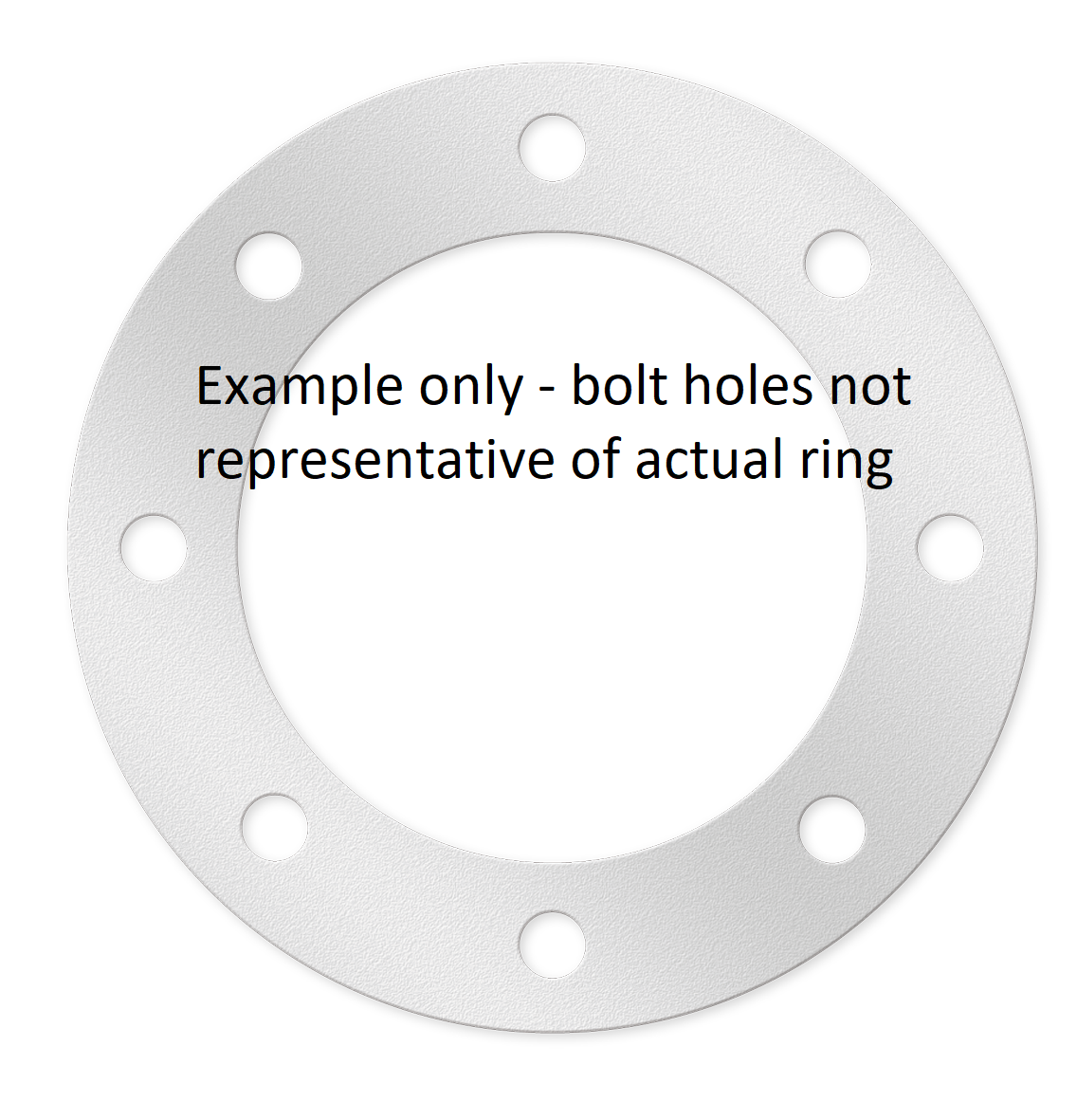

225 ANSI BACK RING GSSUIT PE

System:
PE Systems
Sub System:
Electrofusion and Butt-Welded Fittings
Product Code:
PEBRA225

BACKING RING USED TO REINFORCE A POLYETHYLENE STUB FLANGE

Product properties

Size
225MM
Rating
PN19
Length
BLANK
UOM
EACH
Unprotected UV Exposed
99.9% UV stable (black only)
Product Certifications
ISO TYPE 5 - AMI 20303|WATERMARK WM20303|ISO TS29001|ISO9001 FM 597347.1|WSAA 1127 Part 1&2|
Industry Specific Names
BACK UP PLATE

Product dimensions

Size
225MM
Weight
10.4
Flange OD
28.4
Flange Thickness
28.4
Pitch Circle Diameter
298.5
Number of Bolt Holes
8
Bolt Hole Diameter
298.5
225X8IN ANSI BACKING RING GALVANISED STEEL TO SUIT PE
