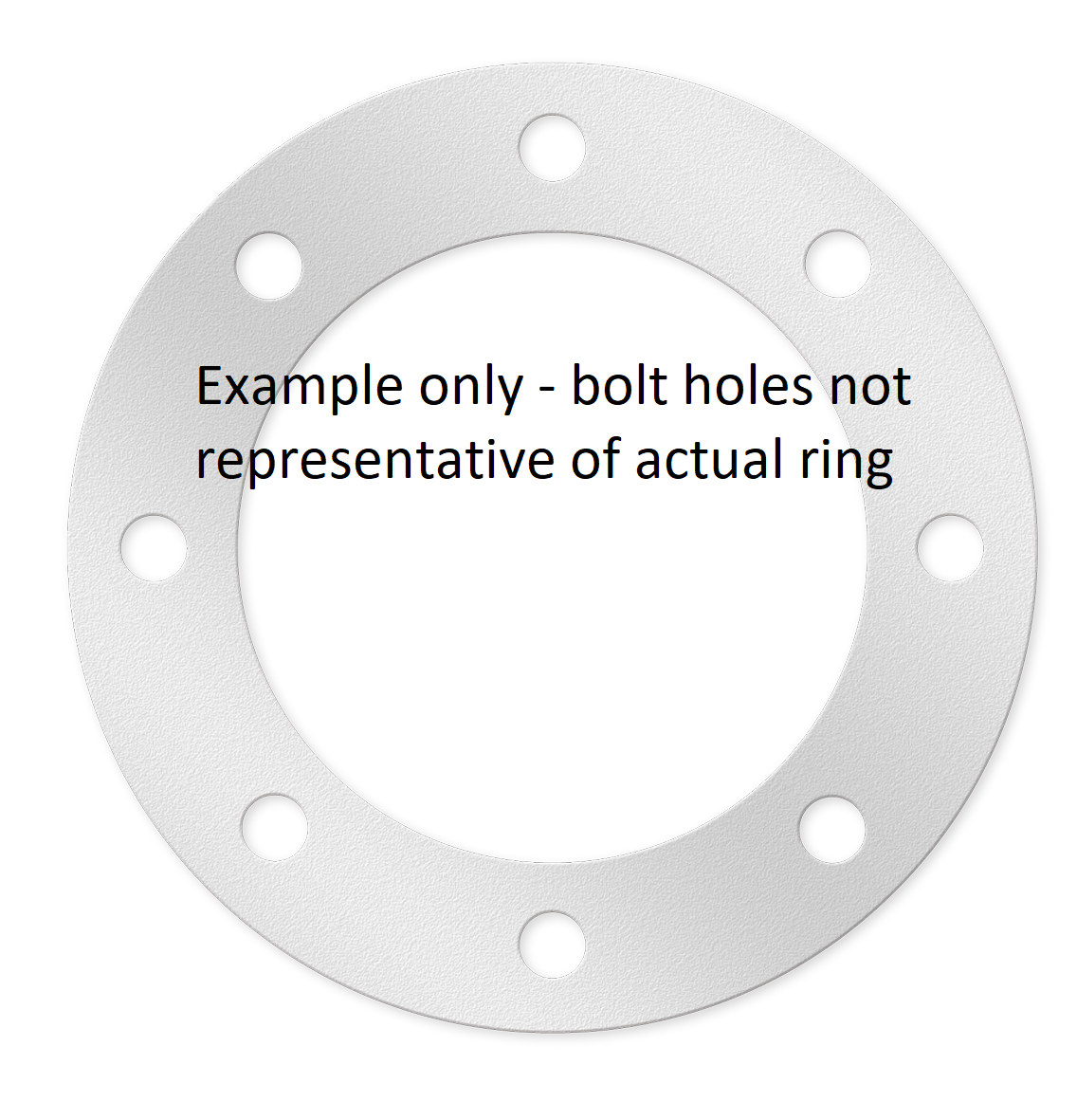

Backing Ring to Suit PE DN200mm AS2129 Table E ST/ST

PEBRE200SS

Backing Ring to Suit PE DN200mm AS2129 Table E ST/ST

Enquire
Enquire
Overview Product Properties Thermal Properties Dimensions Standards & Accreditations

Quick Menu

Overview

Technical Guide Artboard View

Product Properties

Size/Diameter 200 mm
Primary Material OTHER
Joint Type Flanged
Colour Silver
Allowable Operating Pressure - 20 Degrees Celsius 1600 kPa
Unprotected UV Exposed 99.9% UV stable (black only)

Thermal Properties

Flammability Non-Flammable

Dimensions

Size/Diameter 200 mm
Weight 6.3
Flange OD 335
Flange Thickness 19
Pitch Circle Diameter 292
Number of Bolt Holes 8
Bolt Hole Diameter 22 mm

Standards & Accreditations

Product Standard AS/NZS 2129 'Flanges for pipes, valves and fittings'
Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf
