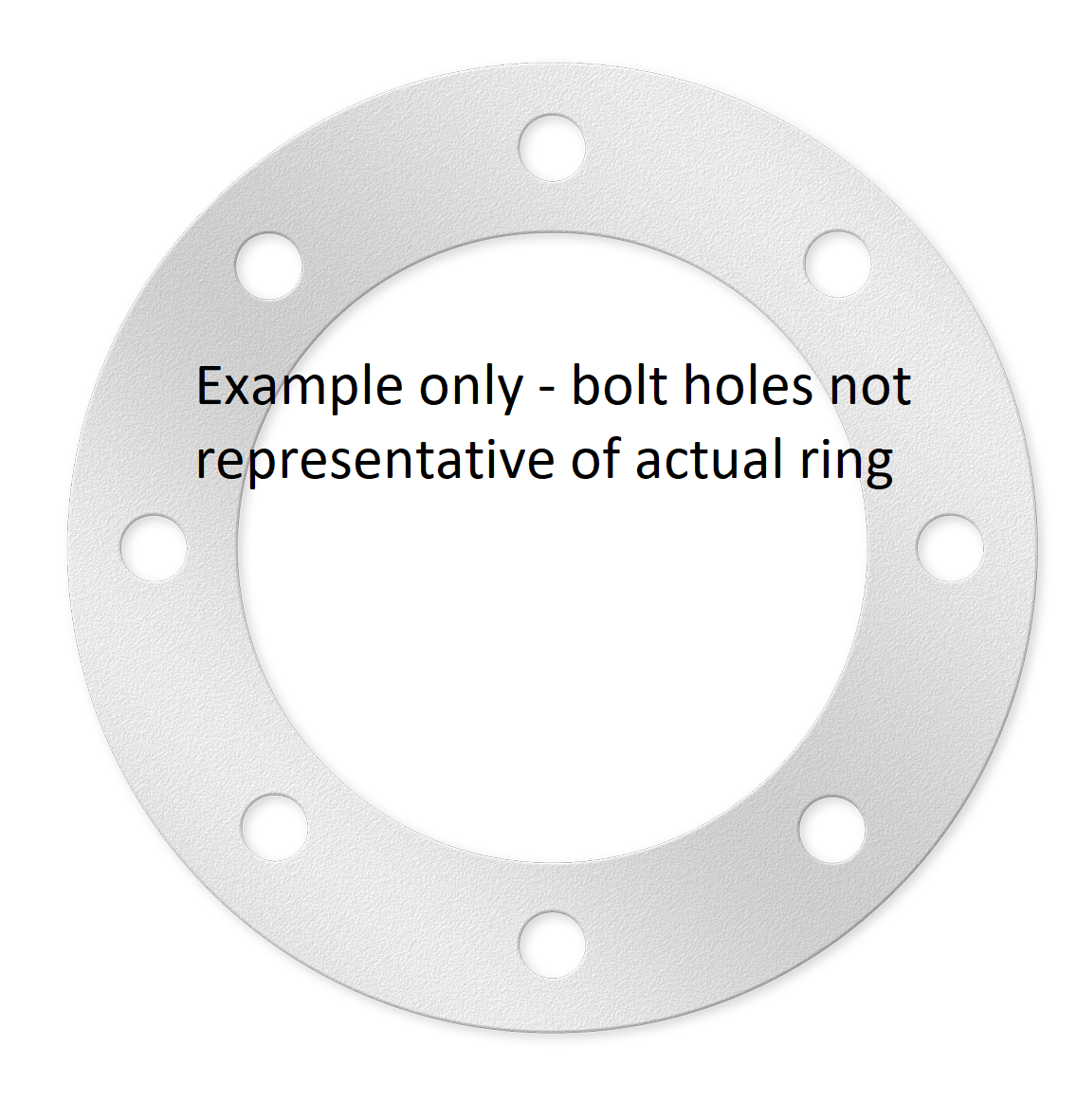

200X8.00IN AS4087 PN16 BACKING RING GALVANISED STEEL TO SUIT PE

Enquire

PEBR16200

Overview

Product Properties

Size 200MM

Rating PN16

Length BLANK

Primary Material OTHER

UOM EACH

Unprotected UV Exposed 99.9% UV stable (black only)

Industry Specific Names BACK UP PLATE

Dimensions

Size 200MM

Weight 6.5

Flange OD 280

Flange Thickness 19

Pitch Circle Diameter 292

Number of Bolt Holes 8

Bolt Hole Diameter 18

Standards & Accreditations

Product Standard AS/NZS 4087 "Metallic flanges for waterworks purposes"

Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
WATERMARK WM20303
ISO TS29001
ISO9001 FM 597347.1
WSAA 1127 Part 1&2

Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf

POP Documents https://www.iplex.com.au/assets/Uploads/PIPA-POP001-Electrofusion-Jointing-of-PE-Pipes-and-Fittings-for-Pressure-Applications-Issue-8.0.pdf
