Products » PE Systems » Electrofusion and Butt-Welded Fittings » 1600 AS2129 TABLE D BACKING RING GALVANISED STEEL TO SUIT PE
  1. Back to Electrofusion and Butt-Welded Fittings
Back

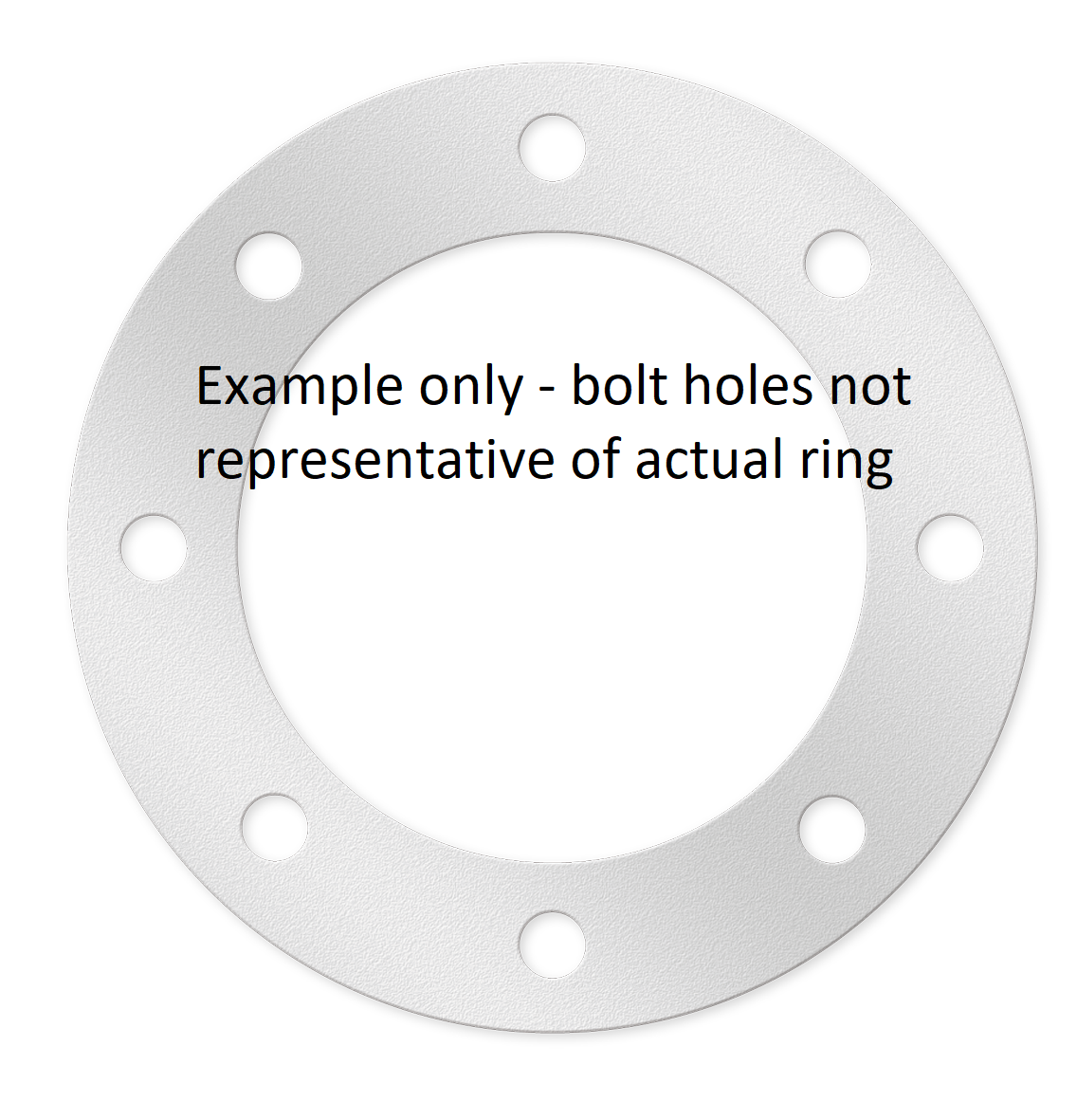

1600 T/D BACK RING GSSUIT PE

System:
PE Systems
Sub System:
Electrofusion and Butt-Welded Fittings
Product Code:
PEBRD1600

BACKING RING USED TO REINFORCE A POLYETHYLENE STUB FLANGE

Enquire

Product properties

Size
1600MM
Rating
PN7
Length
BLANK
UOM
EACH
Unprotected UV Exposed
99.9% UV stable (black only)
Product Certifications
ISO TYPE 5 - AMI 20303|WATERMARK WM20303|ISO TS29001|ISO9001 FM 597347.1|WSAA 1127 Part 1&2|
Industry Specific Names
BACK UP PLATE

Product dimensions

Size
1600MM
Flange OD
1910
Flange Thickness
64
Pitch Circle Diameter
1825
Number of Bolt Holes
40
Bolt Hole Diameter
39
1600 AS2129 TABLE D BACKING RING GALVANISED STEEL TO SUIT PE

Standards & Accreditations

Product Standard
AS/NZS 2129 "Flanges for pipes, valves and fittings"
