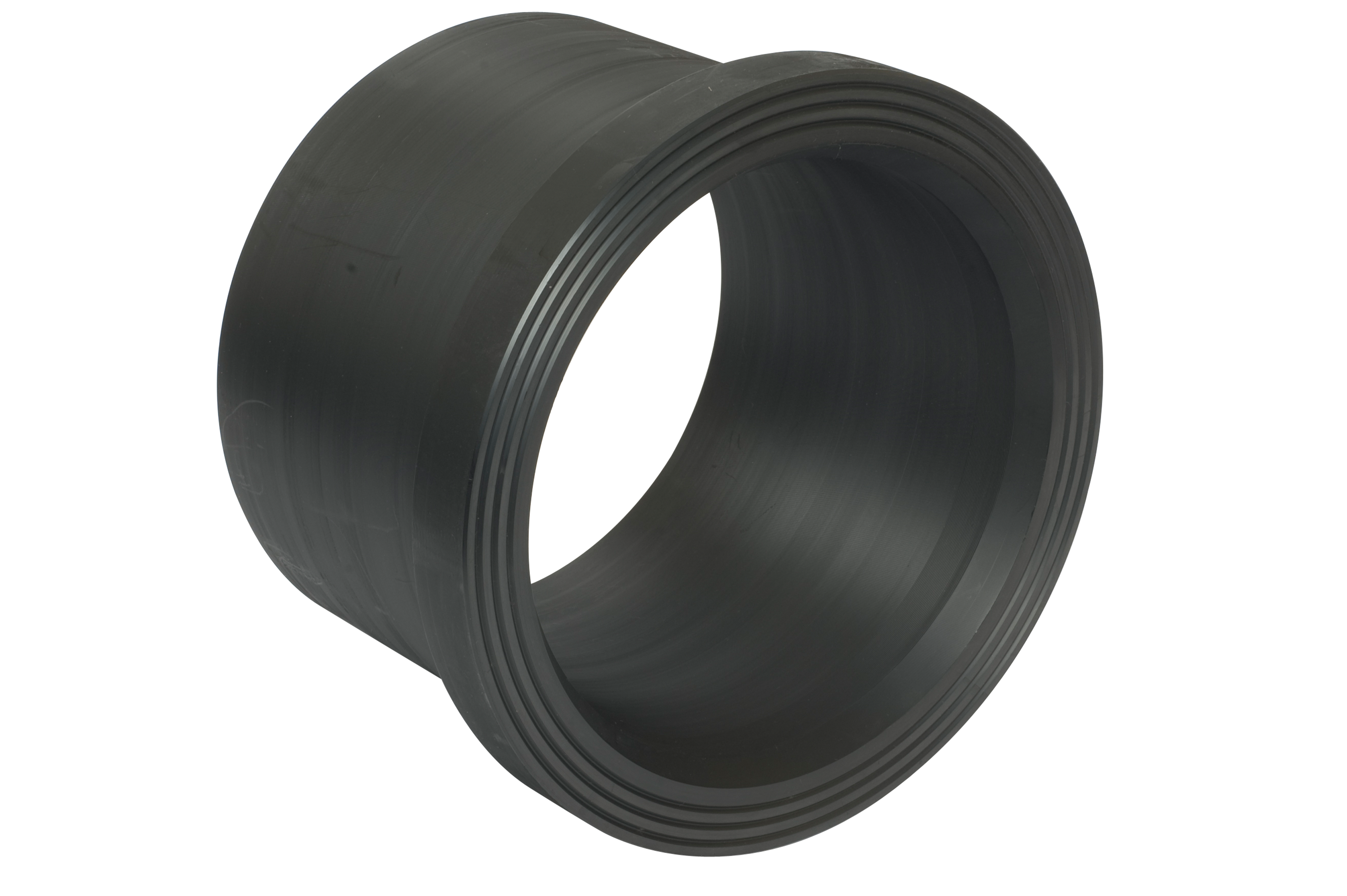

160 SDR17 STUB FLANGE LONG SPIGOT POLYETHYLENE

160 SDR17 STUB FLANGE LONG SPIGOT POLYETHYLENE

Enquire

Enquire



PEST17160LS

Overview
  • Lightweight
  • Easy to use
  • Inexpensive
Product Properties
Size 160MM
Rating SDR17
Length BLANK
Primary Material POLYETHYLENE
UOM EACH
Joint Type Electrofusion or Butt Weld
Unprotected UV Exposed 99.9% UV stable (black only)
Mechanical Properties
Hardness Shore D 63
Thermal Properties
Thermal Conductivity 0.38w/M.k
Dimensions
Size 160MM
Weight 0.7
Standards & Accreditations
Product Standard AS/NZS 4129 "Fittings for polyethylene (PE) pipes for pressure applications"
Product Approvals and Appraisals ISO TYPE 5 - AMI 20303
WATERMARK WM20303
ISO TS29001
ISO9001 FM 597347.1
WSAA 1127 Part 1&2
Environmental Accreditation https://www.iplex.com.au/assets/Uploads/d4f35ea49e/IPL10507-Polyethylene-Pipe-EPD-V1-v4-3.pdf
POP Documents https://www.iplex.com.au/assets/Uploads/PIPA-POP001-Electrofusion-Jointing-of-PE-Pipes-and-Fittings-for-Pressure-Applications-Issue-8.0.pdf
