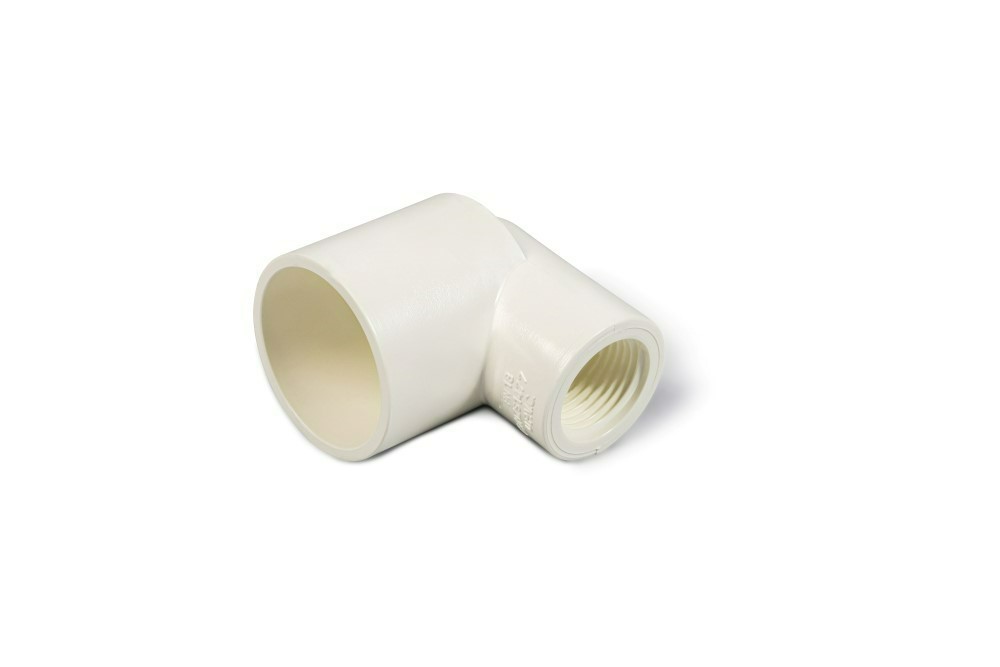

DN25 X 0.75Inch PN18 PVC-U Pressure Faucet Elbow FI BSP Threaded CAT15
P0152520
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Light weight
- Electrically non conductive
Product Properties
Size
25MM
Length
BLANK
Degree
90
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Colour
White
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Cure Time for Solvent Weld Joints
>15℃ 24hrs | 0-15℃ 48hrs
Mechanical Properties
Density - Specific Gravity
1.43
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Yield Stress
176MPa
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
11MPa
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
75℃
Flammability
will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2
Dimensions
Size
25MM
Carton Qty
150
Standards & Accreditations
Product Standard
AS/NZS 1477 "PVC pipes and fittings for pressure applications"
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 year
