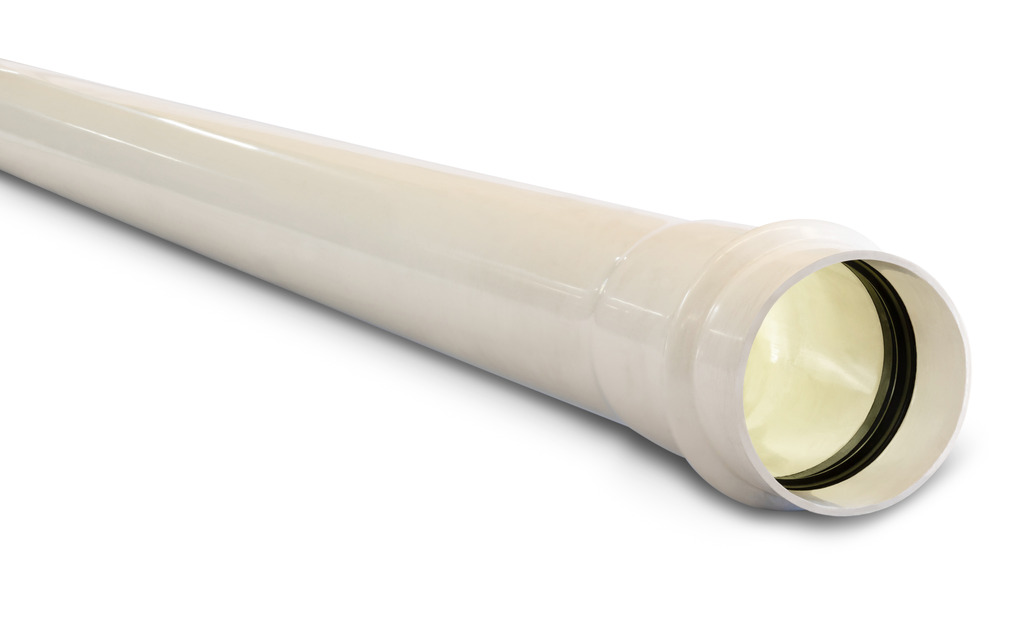

250 PN6 PRESS S1 PIPE RRJX6M UPVC-CW RIEBER RING

Enquire

Enquire



PPHO6250

Overview
  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Electrically nonconductive
Product Properties
Size 250MM
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".
Colour White
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 600kPa
Minimum Radius of Curvature 75m
Socket Deflection
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.5m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity 1.43 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Yield Stress 176MPa
Compressive Strength 66MPa
Tensile Modulus 3200MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 12.3MPa
Ring Bending Modulus - 3mins 3200MPa
Ring Bending Modulus - 50yrs 1200MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138 W/m.K
Specific Heat 1045 J/kg/℃
Vicat Softening Temperature >70℃
Flammability Will not support combustion
Fire Index - Ignitability 7
Fire Index - Smoke Developed 9
Fire Index - Heat Evolved 2
Dimensions
Size 250MM
Carton Qty 8
Chamfer Detail 123
Standards & Accreditations
Product Standard AS/NZS 1477 "PVC pipes and fittings for pressure applications"
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 year
