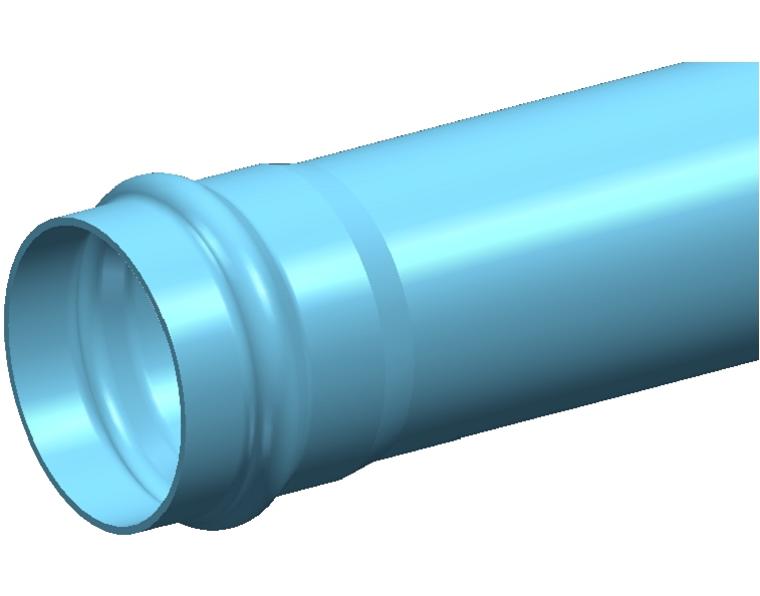

DN225 x 6m PN12.5 Apollo Blue Series 2 PVC-O Pipe Rieber RRJ

Enquire    Download Product Sheet

Enquire



PDRA12225

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Excellent Toughness and Ductility
  • Large Internal Diameter and Smooth bore
Product Data Sheet Artboard View
Product Properties
Size 225MM
Rating PN12.5
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material EPDM
Colour Blue
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 14
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 1200KPa
Minimum Radius of Curvature 68m
Socket Deflection
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 52MPa
Yield Strain 5.50%
Compressive Strength 66MPa
Tensile Modulus 4000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 28MPa
Ring Bending Modulus - 3mins 4000MPa
Ring Bending Modulus - 50yrs 1800MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 2
Fire Index - Smoke Developed 8
Fire Index - Heat Evolved 2
Dimensions
Size 225MM
Inner Diameter 244.7mm
Weight 53kg
Crate Qty 8
Crate Weight 424kg
Wall Thickness 7.1mm
Socket Depth 202mm
Standards & Accreditations
Product Standard AS/NZS 4441
Product Approvals and Appraisals Artboard View
Environmental Accreditation Artboard View    Artboard View
Warranty 1 Year
