DN450 x 6m PN9 White Rhino Series 2 PVC-M Pipe Rieber RRJ

Enquire    Download Product Sheet

Enquire



PDHRW09450

Overview
  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Electrically nonconductive
Product Data Sheet Artboard View
Product Properties
Size 450MM
Rating PN9
Length 6.0M
Primary Material PVC
UOM LENGTHS
Joint Type RRJ
Rubber Ring Material EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".
Colour White
Minimum Cover Depth Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant 5
Allowable Operating Temperature - Degrees 50℃
Allowable Operating Pressure - 20 Degrees Celsius 900kPa
Minimum Radius of Curvature 135m
Socket Deflection
Maximum Diametric Deflection - 50yrs 7.50%
Unprotected UV Exposed 2 Years
Maximum Support Spacing of Pipe Graded 1.5m
Markings Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names Iplex Rhino®
Mechanical Properties
Density - Specific Gravity 1.47 kg/m3
Ultimate Tensile Strength 38MPa
Yield Strain 5.50%
Compressive Strength 66MPa
Tensile Modulus 3000MPa
Hardness Shore D 85
Poissons Ratio 0.38
Design Stress 17.5MPa
Ring Bending Modulus - 3mins 3000MPa
Ring Bending Modulus - 50yrs 1200MPa
Thermal Properties
Coefficient of Thermal Expansion 7 x 10-5/℃
Thermal Conductivity 0.138 W/m.K
Specific Heat 1047 J/kg/℃
Vicat Softening Temperature >79℃
Flammability Will not support combustion
Fire Index - Ignitability 7
Fire Index - Smoke Developed 9
Fire Index - Heat Evolved 2

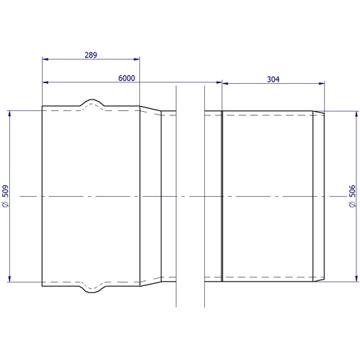

Dimensions
Size 450MM
Inner Diameter 480.1mm
Weight 195kg
Crate Qty 2
Crate Weight 390kg
Wall Thickness 13.5mm
Socket Depth 289.2mm
Chamfer Detail 36mm
Witness Mark Detail 309mm
450 PN9 PRESS S2 PIPE RRJX6M WHT MPVC CW RIEBER RING
Standards & Accreditations
Product Standard AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
POP Documents PIPA Guidelines & Notes (iplex.com.au)
Warranty 1 Year
