DN450 x 6m PN16 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ

System:
PVC Pressure System
Sub System:
PVC-M
Product Code:
PDHR16450

Drinking water

Features

  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Electrically nonconductive
Product Data Sheet
Link

Product properties

Size
450MM
Rating
PN16
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".
Colour
Blue
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
1600kPa
Minimum Radius of Curvature
135m
Socket Deflection
1°
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names
Iplex Rhino®

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
38MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
3000MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
17.5MPa
Ring Bending Modulus - 3mins
3000MPa
Ring Bending Modulus - 50yrs
1200MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10??/°C
Thermal Conductivity
0.138 W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
>79°C
Flammability
Will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2

Product dimensions

Size
450MM
ID
460.2mm
Weight
310kg
Crate Qty
2
Crate Weight
620kg
Wall Thickness
23.4mm
Socket Depth
289.2mm
Max Socket Nominal OD
507mm
Chamfer Detail
36mm
Witness Mark Detail
309mm

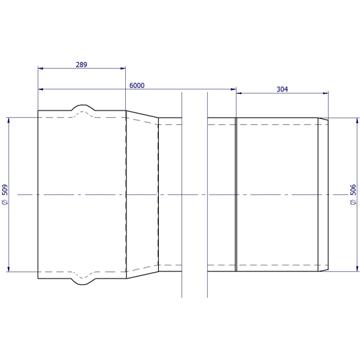

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
