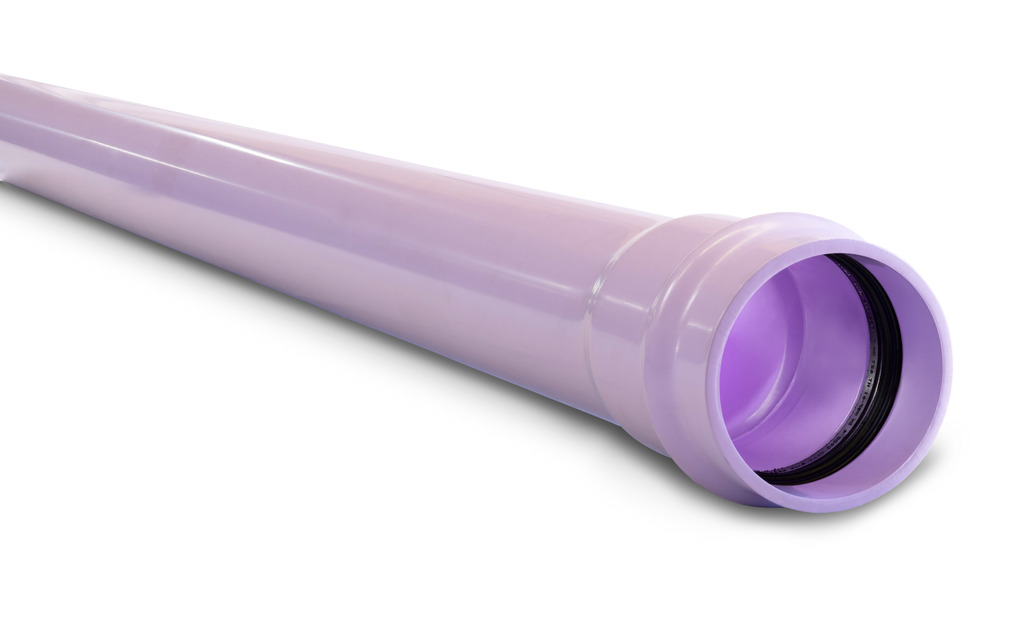

DN250 x 6m PN16 Purple Rhino Series 2 PVC-M Pipe Rieber RRJ

Size

250MM

Rating

PN16

Length

6.0M

Primary Material

PVC

UOM

LENGTHS

Rubber Ring Material

EPDM

Colour

Purple

Minimum Cover Depth

Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm

Average Number of Joints per Litre-Iplex Lubricant

12

Allowable Operating Temperature - Degrees

50°C

Allowable Operating Pressure - 20 Degrees Celsius

1600kPa

Minimum Radius of Curvature

75m

Socket Deflection

1°

Maximum Diametric Deflection - 50yrs

7.50%

Unprotected UV Exposed

2 Years

Mechanical properties

Density - Specific Gravity

1.47kg/m³

Ultimate Tensile Strength

38MPa

Yield Strain

5.50%

Compressive Strength

48MPa

Tensile Modulus

3000MPa

Hardness Shore D

85

Poissons Ratio

0.38

Design Stress

17.5MPa

Ring Bending Modulus - 3mins

3000MPa

Ring Bending Modulus - 50yrs

1200MPa

Thermal properties

Coefficient of Thermal Expansion

7 x 10-5/oC

Thermal Conductivity

0.138W/m.K

Specific Heat

1047 J/kg/oC

Vicat Softening Temperature

>79°C

Flammability

Will not support combustion

Fire Index - Ignitability

2

Fire Index - Smoke Developed

8

Fire Index - Heat Evolved

2

Size

250MM

ID

259.7mm

Weight

989kg

Crate Qty

8

Crate Weight

784kg

Wall Thickness

13.3mm

Socket Depth

205.3mm

Max Socket Nominal OD

286.2mm

Chamfer Detail

25mm

Witness Mark Detail

220mm
