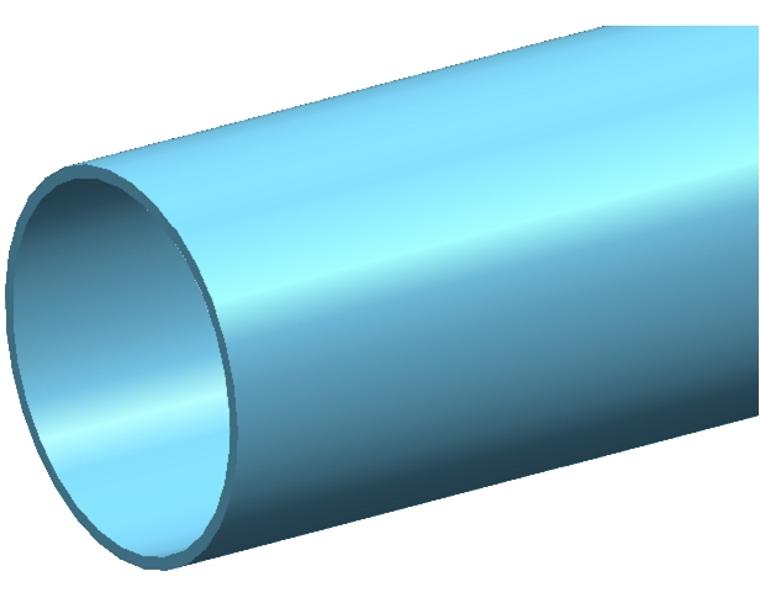

DN250 x3m PN12.5 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ

System:
PVC Pressure System
Sub System:
PVC-M
Product Code:
PDPR12250C

Used for above or below ground applications to convey potable water in pressure applications

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Electrically non conductive
Product Data Sheet
Link

Product properties

Size
250MM
Rating
PN12.5
Length
3.0M
Primary Material
PVC
UOM
LENGTHS
Rubber Ring Material
EPDM
Colour
Blue
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
12
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
1200KPa
Minimum Radius of Curvature
75m
Socket Deflection
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
38MPa
Yield Strain
5.50%
Compressive Strength
48MPa
Tensile Modulus
3000MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
17.5MPa
Ring Bending Modulus - 3mins
3000MPa
Ring Bending Modulus - 50yrs
1200MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
>79°C
Flammability
Will not support combustion
Fire Index - Ignitability
2
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
2

Product dimensions

Size
250MM
ID
266mm
Weight
78kg
Crate Qty
8
Crate Weight
624kg
Wall Thickness
10.1mm
Socket Depth
205.3mm
Max Socket Nominal OD
286.2mm
Chamfer Detail
25mm
Witness Mark Detail
220mm
CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
POP Documents
View POP Documents
Warranty
1 Year
