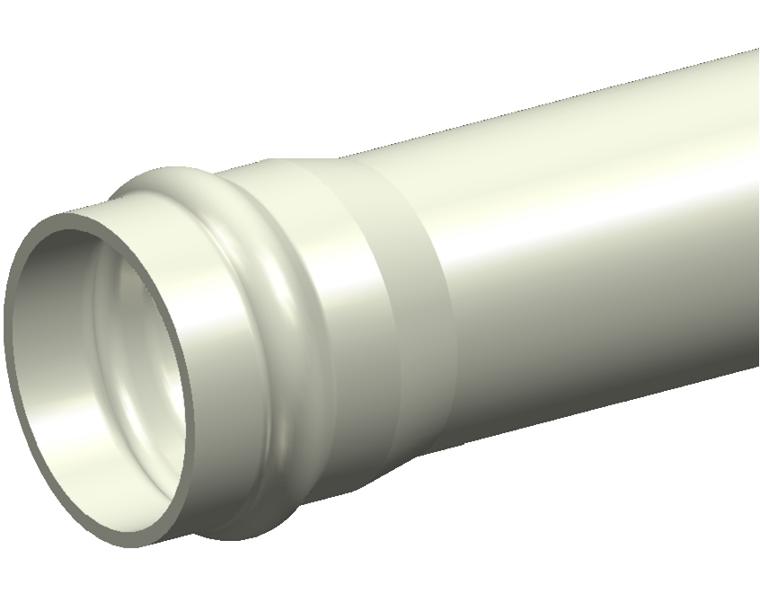

DN200 x 6m PN20 Cream Rhino Series 2 PVC-M Pipe Rieber RRJ

System:
PVC Pressure System
Sub System:
PVC-M
Product Code:
PDHRC20200

Used for above or below ground applications to convey sewerage in pressure applications

Features

  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Electrically non conductive
Product Data Sheet
Link

Product properties

Size
200MM
Rating
PN20
Length
6.0M
Primary Material
PVC
UOM
LENGTHS
Rubber Ring Material
EPDM
Colour
Cream
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
16
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
2000kPa
Minimum Radius of Curvature
60m
Socket Deflection
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
38MPa
Yield Strain
5.50%
Compressive Strength
48MPa
Tensile Modulus
3000MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
17.5MPa
Ring Bending Modulus - 3mins
3000MPa
Ring Bending Modulus - 50yrs
1200MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10-5/oC
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/oC
Vicat Softening Temperature
>79°C
Flammability
Will not support combustion
Fire Index - Ignitability
2
Fire Index - Smoke Developed
8
Fire Index - Heat Evolved
2

Product dimensions

Size
200MM
ID
205.8mm
Weight
81kg
Crate Qty
10
Crate Weight
810kg
Wall Thickness
13.3mm
Socket Depth
185mm
Max Socket Nominal OD
232.3mm
Chamfer Detail
24mm
Witness Mark Detail
203mm
CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
Warranty
1 Year
