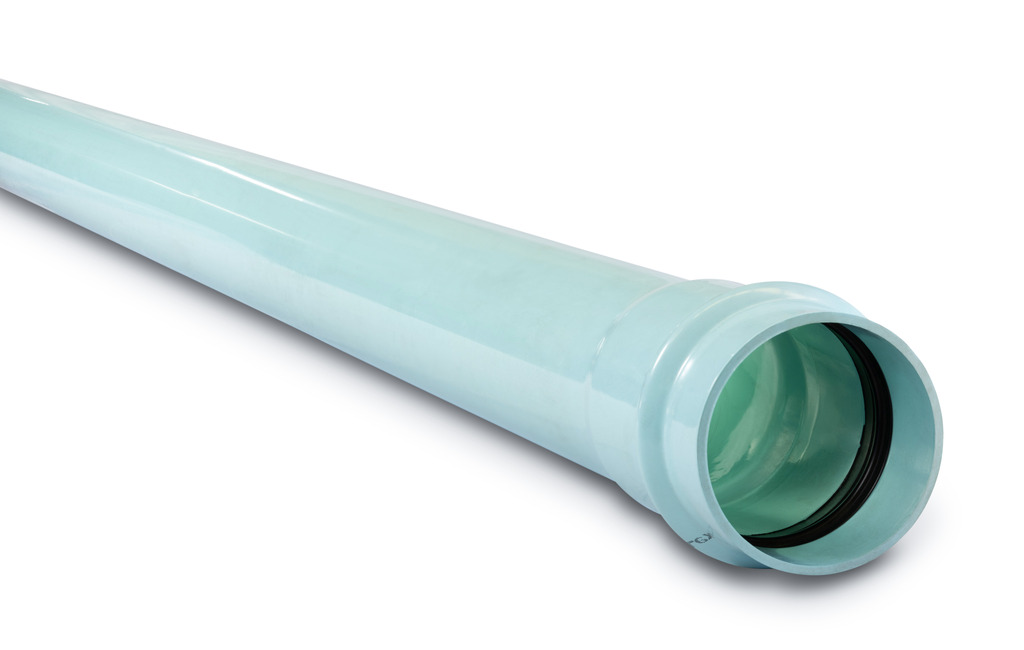

DN100 x 6m PN12.5 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ

System:
PVC Pressure System
Sub System:
PVC-M
Product Code:
PDHR12100

Drinking water

Features

  • Australian Made
  • BEP PVC - Manufactured from Best Environmental Practice PVC
  • Installation economics
  • Operation efficiencies
  • Corrosion resistant
  • Light weight
  • Electrically nonconductive
Product Data Sheet
Link

Product properties

Size
100MM
Rating
PN12.5
Joint Type
RRJ
Rubber Ring Material
EPDM polymer, which conforms to the requirements of AS 1646 "Elastomeric seals for waterwork purposes".
Colour
Blue
Minimum Cover Depth
Not subject to vehicular loading 300mm |With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm |With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
42
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
1200KPa
Minimum Radius of Curvature
30m
Socket Deflection
1°
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.2m
Maximum Support Spacing of Pipe Vertical
2.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names
Iplex Rhino®

Mechanical properties

Density - Specific Gravity
1.47kg/m3
Ultimate Tensile Strength
38MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
3000MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
17.5MPa
Ring Bending Modulus - 3mins
3000MPa
Ring Bending Modulus - 50yrs
1200MPa

Thermal properties

Coefficient of Thermal Expansion
7 x 10??/°C
Thermal Conductivity
0.138 W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
>79°C
Flammability
Will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2

Product dimensions

Size
100MM
ID
106.1mm
Weight
14.15kg
Crate Qty
36
Crate Weight
508.90kg
Wall Thickness
4.4mm
Socket Depth
141.4mm
Max Socket Nominal OD
121.9mm
Chamfer Detail
17mm
Witness Mark Detail
154mm

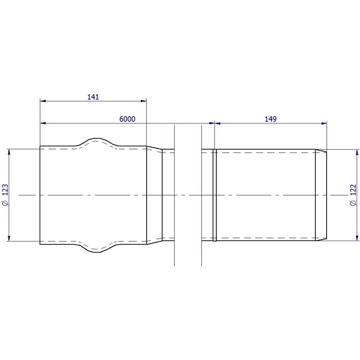

CAD PDF
Link

Standards & Accreditations

Product Standard
AS/NZS 4765 "Modified PVC (PVC-M) pipes for pressure applications"
POP Documents
PIPA Guidelines & Notes (iplex.com.au)
Warranty
1 Year
