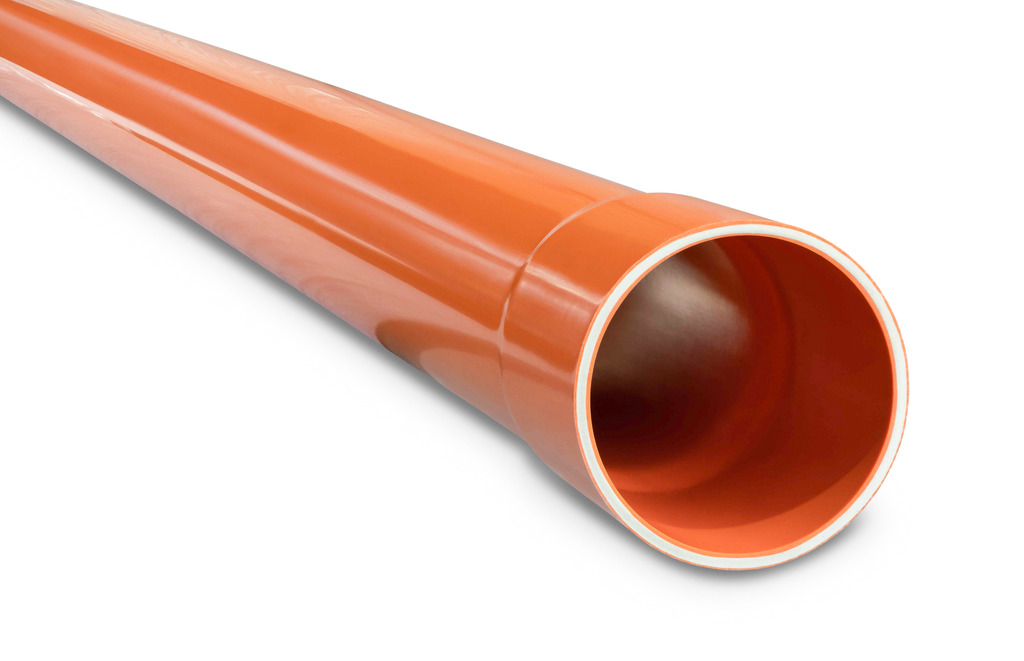

100 HD COND PIPE SWJX4M ORG ELEC FC
P6001004
Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Light weight
- Electrically nonconductive
Product Properties
Size
100MM
Length
4.0M
Primary Material
PVC
UOM
LENGTHS
Joint Type
Solvent Weld Joint
Colour
Orange
Allowable Operating Temperature - Degrees
60℃
Minimum Radius of Curvature
30m
Socket Deflection
0
Unprotected UV Exposed
3 months
Maximum Support Spacing of Pipe Graded
1.2m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Ultimate Tensile Strength
52MPa
Yield Strain
5.50%
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
11MPa
Ring Bending Modulus - 3mins
3000MPa
Ring Bending Modulus - 50yrs
1200MPa
Thermal Properties
Coefficient of Thermal Expansion
7 x 10-5/℃
Thermal Conductivity
0.138 W/m.K
Specific Heat
1047 J/kg/℃
Vicat Softening Temperature
>70℃
Flammability
Will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Heat Evolved
2
Dimensions
Size
100MM
Standards & Accreditations
Product Standard
Referenced Australian electrical and telecommunications product standards include: AS/NZS 2053 (various parts)
AS/NZS 4296
AS/NZS 5033
AS 4702
AS/NZS 4296
AS/NZS 5033
AS 4702
Environmental Accreditation
Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037
