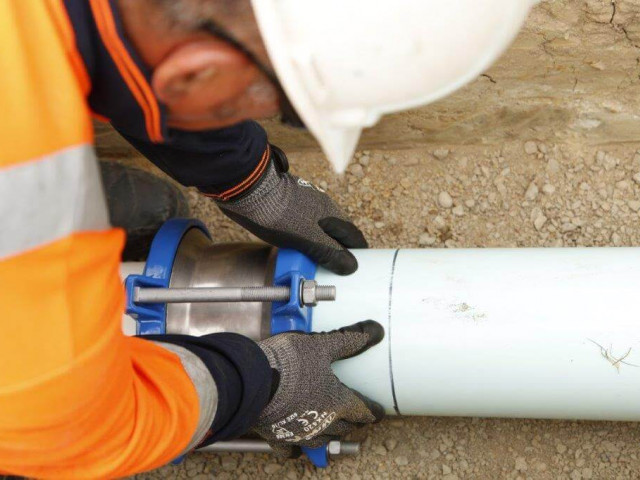

50-65 AVK Coupling Stepped Universal 57-74/68-85 PN16 SS Bolts Series 602

System:
Metals
Sub System:
Couplings
Product Code:
C32602.074085

Dedicated coupling for use on Cast Iron, Ductile Iron, Steel, PVC-U, PVC-M, PVC-O, AC and copper pipes

Enquire

Features

  • Non restrained
  • Angular deflection of ±3 degrees (total 6 degrees)
  • For water and sewer applications to max 60°C

Additional Information

AVK Reference Code: 6020740854312

Product Data Sheet
Link

Product properties

Size
50MM
Rating
PN16
Length
BLANK
Primary Material
DUCTILE IRON
Rubber Ring Material
EPDM (RRJ)
Lining Specification
Thermal bonded polymeric coatings AS/NZS 4158
Markings
NIBF
Industry Specific Names
Griptite®, Nortite®, Superlite®
Alternative Iplex Products
PVC, PE, GRP

Mechanical properties

Density - Specific Gravity
7.10kg/m3
Ultimate Tensile Strength
400MPa
Hardness Shore D
250

Thermal properties

Product dimensions

Size
50MM

Standards & Accreditations

Product Standard
AS/NZS 4998:2009 bolted unrestrained mechanical couplings for waterworks purposes
AS/NZS 4020
Product Approvals and Appraisals
Standards Mark Licence SMKP 25236
