272-296 SUPA-GIB LG (6BOLT)SS FLG SL & BOLTS SERIES 601

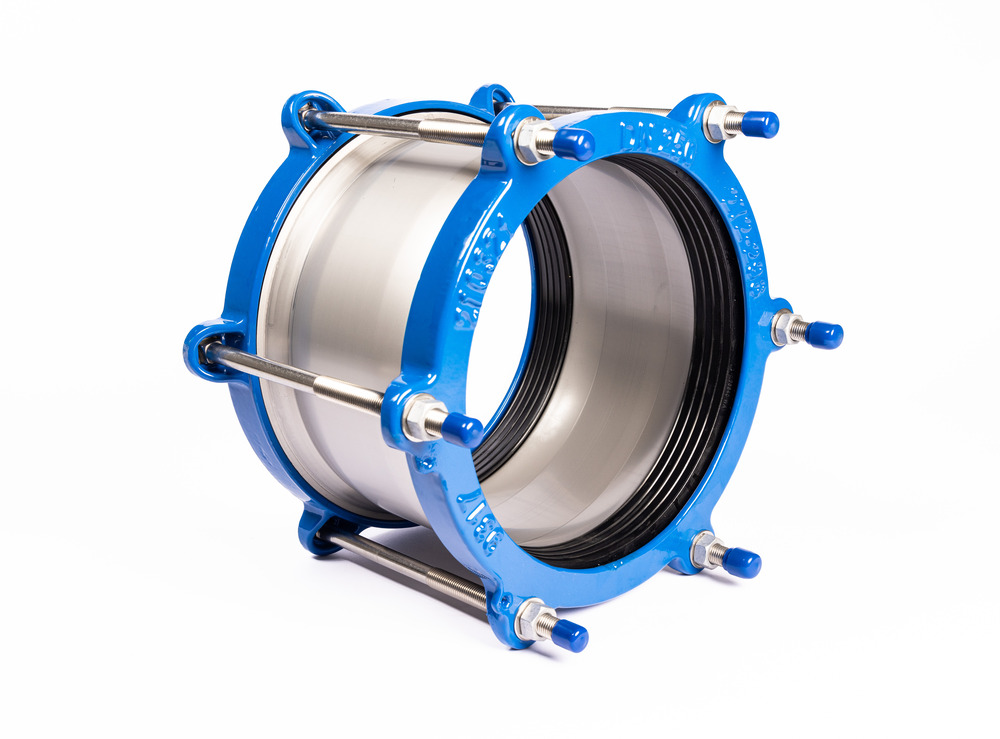

272-296 AVK Supa-Gib Coupling Long (6 Bolt) SS Barrel Series 601



Enquire

Enquire



C32604.272296S

Overview
  • Non restrained
  • Angular deflection of ±3 degrees (total 6 degrees)
  • For water and sewer applications to max 60&#8451
Additional Information AVK Reference Code: 6015029615
Product Data Sheet Artboard View
Product Properties
Size 225MM
Rating PN16
Length BLANK
Primary Material DUCTILE IRON
UOM EACH
Rubber Ring Material EPDM (RRJ)
Lining Specification Thermal bonded polymeric coatings AS/NZS 4158
Markings NIBF
Industry Specific Names Griptite®, Nortite®, Superlite®
Alternative Iplex Products PVC, PE, GRP
Mechanical Properties
Density - Specific Gravity 7.10 kg/m3
Ultimate Tensile Strength 400MPa
Hardness Shore D 250
Dimensions
Size 225MM
Standards & Accreditations
Product Standard AS/NZS 4998:2009 bolted unrestrained mechanical couplings for waterworks purposes
AS/NZS 4020
Product Approvals and Appraisals Artboard View
POP Documents Artboard View
