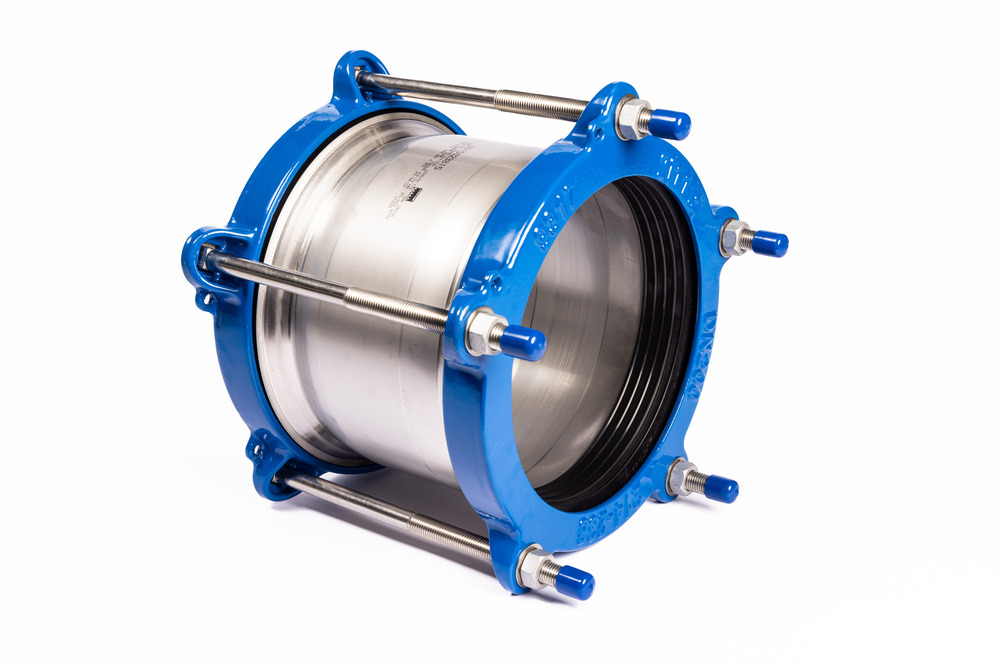

214-238 AVK Supa-Gib Coupling Long (5 Bolt) SS FLG Barrel Series 601
Enquire Download Product Sheet
C32604.214238S
Overview
- Non restrained
- Angular deflection of ±3 degrees (total 6 degrees)
- For water and sewer applications to max 60℃
Additional Information
AVK Reference Code: 6015023815
Product Data Sheet
View
Product Properties
Size
200MM
Rating
PN16
Length
BLANK
Primary Material
DUCTILE IRON
UOM
EACH
Rubber Ring Material
EPDM (RRJ)
Lining Specification
Thermal bonded polymeric coatings AS/NZS 4158
Markings
NIBF
Industry Specific Names
Griptite®, Nortite®, Superlite®
Alternative Iplex Products
PVC, PE, GRP
Mechanical Properties
Density - Specific Gravity
7.10
kg/m3
Ultimate Tensile Strength
400MPa
Hardness Shore D
250
Dimensions
Size
200MM
Standards & Accreditations
Product Standard
AS/NZS 4998:2009 bolted unrestrained mechanical couplings for waterworks purposes
AS/NZS 4020
AS/NZS 4020
Product Approvals and Appraisals
Standards Mark Licence SMKP 25236
