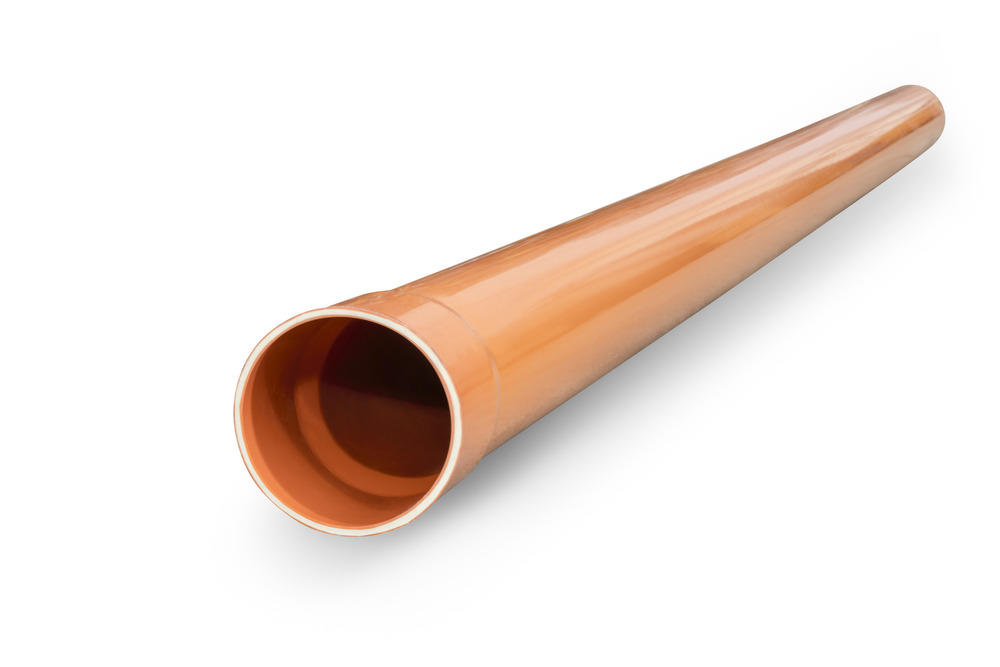

200 HD COND PIPE SWJ X4M ORG ELEC FC
P6002004
Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Light weight
- Electrically nonconductive
Product Properties
Size/Diameter
200MM
Length
4.0M
Primary Material
PVC
Joint Type
Solvent Weld Joint
Colour
Orange
Allowable Operating Temperature - Degrees
60°C
Minimum Radius of Curvature
60m
Socket Deflection
0
Unprotected UV Exposed
3 months
Maximum Support Spacing of Pipe Graded
1.5m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Ultimate Tensile Strength
52MPa
Yield Strain
0.055
Compressive Strength
66MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
12.3MPa
Ring Bending Modulus - 3mins
3000MPa
Ring Bending Modulus - 50yrs
1200MPa
Thermal Properties
Coefficient of Thermal Expansion
7 × 10⁻⁵/°C
Thermal Conductivity
0.138 W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
>70°C
Flammability
Will not support combustion
Fire Index - Ignitability
7
Fire Index - Smoke Developed
9
Fire Index - Spread of Flame
0
Fire Index - Heat Evolved
2
Dimensions
Size/Diameter
200MM
Weight
31.4 kg
Crate Quantity
14
Crate Weight
439.61kg
Socket Length
147
Socket Mouth Diameter
225.9
Socket Root Diameter
224.3
Wall Skin Thickness
0.8
Standards & Accreditations
Product Standard
Referenced Australian electrical and telecommunications product standards include: AS/NZS 2053 (various parts)
AS/NZS 4296
AS/NZS 5033
AS 4702
AS/NZS 4296
AS/NZS 5033
AS 4702
