Overview
- Robust, compact design maximises performance in confined spaces.
- Lightweight polypropylene construction simplifies handling and installation.
- Exceptional toughness for demanding underground applications.
- Easy assembly with dual rubber ring seals.
- Engineered for reliable, long-term performance.
Additional Information
add 2 x Rubber rings GERSEW600
Product Data Sheet
View

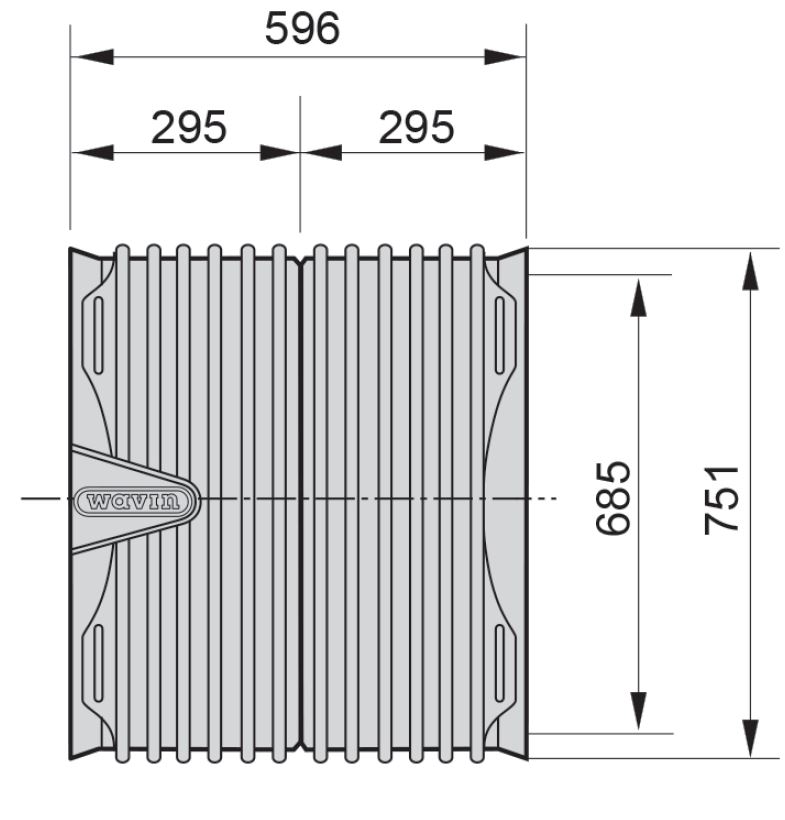

Line Drawing Dimensions
View
Product Properties
Size/Diameter
600 mm
Rating
Non Pressure
Primary Material
Polypropylene
Joint Type
RRJ
Colour
Black
Allowable Operating Temperature - Degrees
Up to 50 oC, rerating is applied > 20 oC
Markings
Iplex, WAVIN, EziPit, Coupling, DN600, PP, Date of Manufacture, Batch and Identity Code, DN600 x 600 FF RRJ, EN 13598-2
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Poissons Ratio
0.45
Thermal Properties
Coefficient of Thermal Expansion
15 x 10-5 / o C
Dimensions
Size/Diameter
600 mm
Weight
12.653 kg
Standards & Accreditations
Product Standard
WSA137
