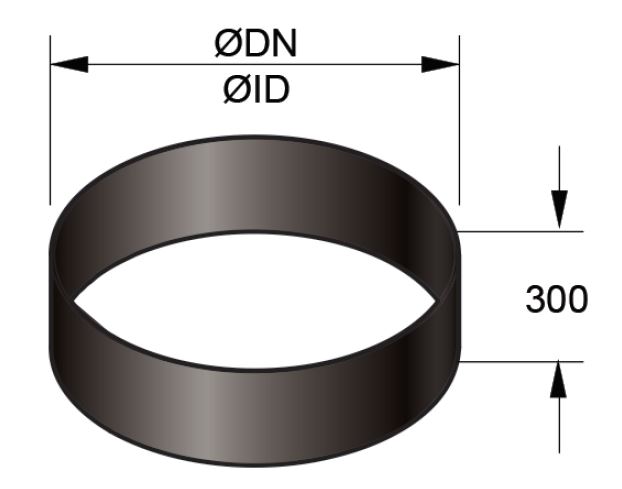

Ezipit PE Shroud 600 - DN800 x 0.30 m
POH04800T
Overview
- Lightweight
- Durable
- Long Service Life
- Environmentally Friendly
- Corrosion and Chemical Resistance
Product Data Sheet
View
Product Properties
Size/Diameter
800 mm
Rating
SDR41
Length
0.3 m
Primary Material
POLYETHYLENE
Joint Type
Electrofusion, butt-weld, mechanical
Colour
Black
Allowable Operating Pressure - 20 Degrees Celsius
400 kPa @ 20°C
Maximum Diametric Deflection - 50yrs
7.5% (AS/NZS 2566)
Unprotected UV Exposed
99.9% UV stable (black only)
Maximum Support Spacing of Pipe Graded
3.0m
Maximum Support Spacing of Pipe Vertical
6.0m
Mechanical Properties
Density - Specific Gravity
0.95
kg/m3
Ultimate Tensile Strength
23 Mpa
Yield Strain
0.08 – 0.1
Yield Stress
25 MPa
Compressive Strength
32MPa
Tensile Modulus
900 MPa
Hardness Shore D
63
Poissons Ratio
0.4
Design Stress
8 MPa
Ring Bending Modulus - 3mins
950 MPa
Ring Bending Modulus - 50yrs
260 MPa
Thermal Properties
Coefficient of Thermal Expansion
1.8 × 10⁻⁴/°C
Thermal Conductivity
0.38W/m.K
Specific Heat
1.9 J·kg⁻¹·K⁻¹
Vicat Softening Temperature
116°C
Flammability
Supports combustion, will burn when sufficient heat and oxygen are provided
Fire Index - Ignitability
13
Fire Index - Smoke Developed
3
Fire Index - Spread of Flame
7
Fire Index - Heat Evolved
6
Dimensions
Size/Diameter
800 mm
Weight
15
Standards & Accreditations
Product Standard
Manufactured to AS/NZS 4130 from resin compounds complying with AS/NZS 4131
Environmental Accreditation
EPD S-P-00715
