Overview

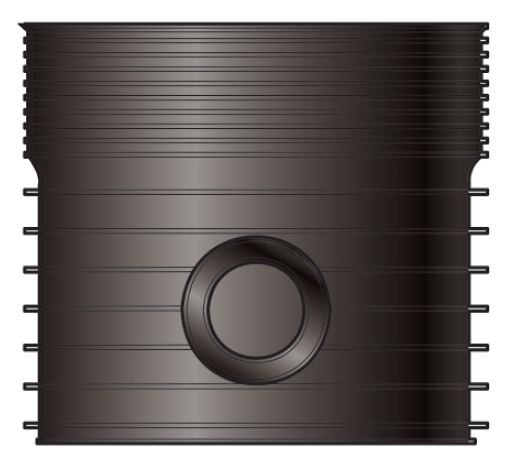

- Durable injection moulded polypropylene construction for long service life.
- Smooth flow channels and benching maximise hydraulic performance.
- Multiple channel configurations provide installation flexibility.
- Lightweight, robust design simplifies handling and installation.
- Watertight, corrosion-resistant and sustainable for reliable performance.
Product Data Sheet
View

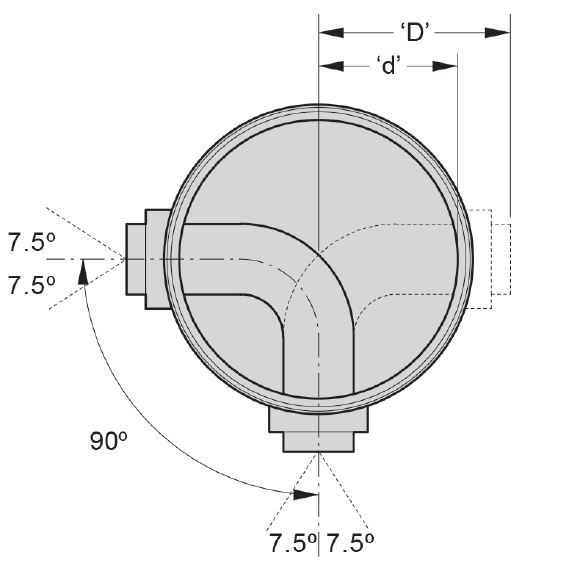

Line Drawing Dimensions
View
Product Properties
Size/Diameter
425 mm
Rating
Non Pressure
Primary Material
Polypropylene
Joint Type
RRJ
Colour
Black
Allowable Operating Temperature - Degrees
Up to 50 oC, rerating is applied > 20 oC
Socket Deflection
7.5O / Swivel Socket
Markings
Iplex, WAVIN, EziPit, Base, DN425, PP, Date of Manufacture, Batch and Identity Code, DN425 x dn150 x 90o FF RRJ, EN 13598-2
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Poissons Ratio
0.45
Thermal Properties
Coefficient of Thermal Expansion
15 x 10-5 / o C
Dimensions
Size/Diameter
425 mm
Weight
15.5 kg
Standards & Accreditations
Product Standard
WSA137
