TGU425

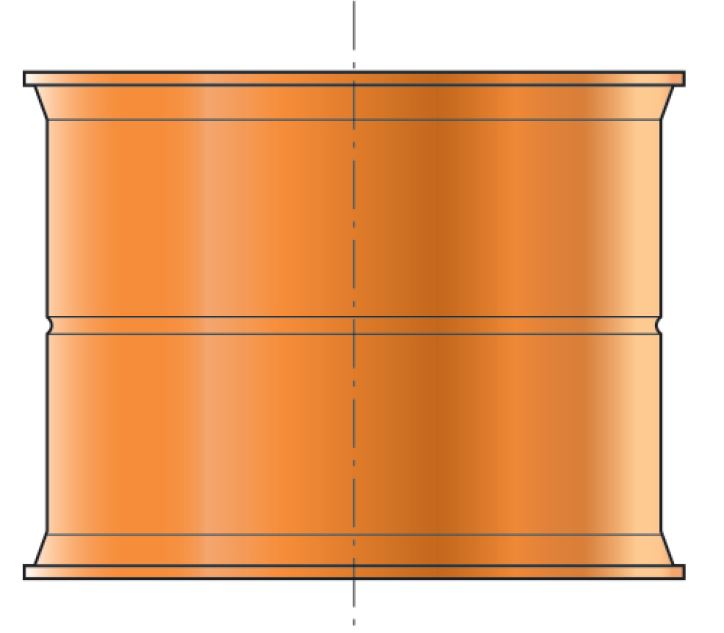

EziPit® 425 Double Socket F&F

Download Product Sheet

Overview Product Properties Mechanical Properties Thermal Properties Dimensions Standards & Accreditations

Overview

Robust, compact design maximises performance in confined spaces.
Lightweight polypropylene construction simplifies handling and installation.
Exceptional toughness for demanding underground applications.
Easy assembly with dual rubber ring seals.
Engineered for reliable, long-term performance.

Additional Information add 2 x Rubber rings GERSEW425

Product Data Sheet View

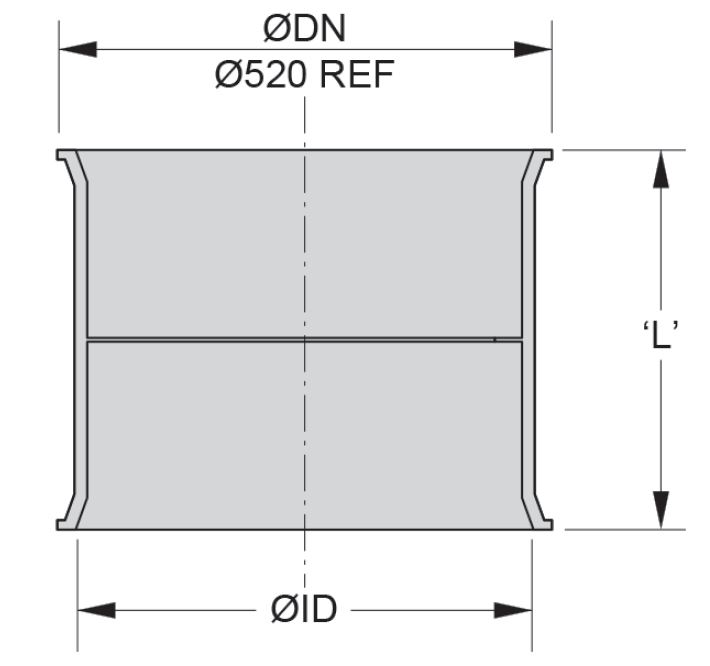

Line Drawing Dimensions View

Product Properties

Size/Diameter 425 mm

Rating Non Pressure

Primary Material Other

Joint Type RRJ

Colour Black

Allowable Operating Temperature - Degrees Up to 50 oC, rerating is applied > 25 oC

Markings Iplex, WAVIN, EziPit, Coupling, DN425, PVC, Date of Manufacture, Batch and Identity Code, DN425 x 400 FF RRJ, EN 13598-2

Mechanical Properties

Density - Specific Gravity 1.45 kg/m³

Poissons Ratio 0.38

Thermal Properties

Coefficient of Thermal Expansion 7 x 10-5 / o C

Dimensions

Size/Diameter 425 mm

Weight 4.1 kg

Standards & Accreditations

Product Standard WSA137
