Overview
- 300mm clear opening provides safe access for CCTV inspection and cleaning.
- Reduced opening size helps minimise falls-from-height risks.
- Integrated safety warning message supports safer operation.
- Lightweight design enables easy removal for maintenance.
- Gas-tight and watertight sealing with Gatic sealing compound.
Additional Information
Requires Gatic Sealing Compound, NOT FOR PRESSURE TESTING
Product Data Sheet
View

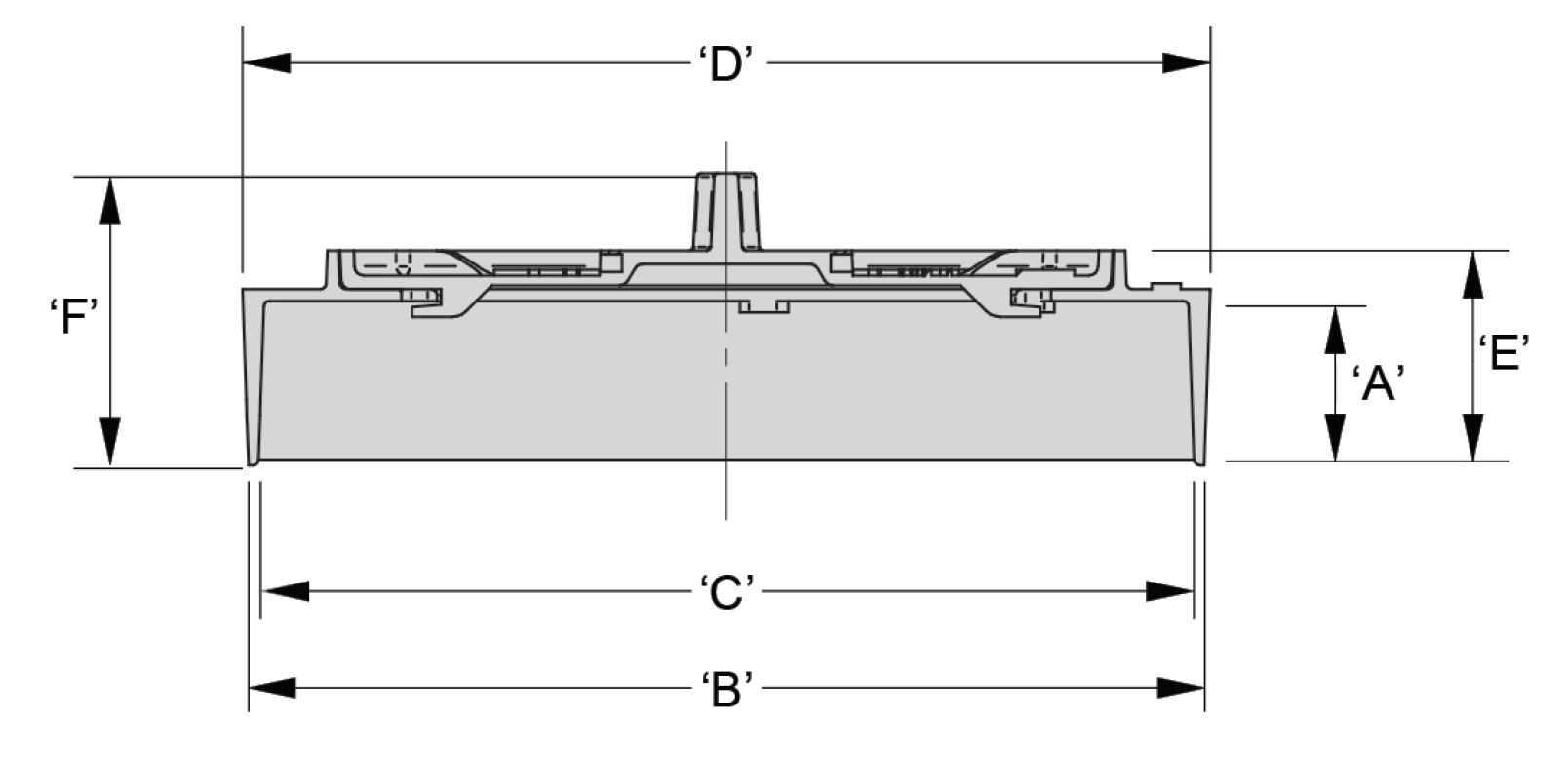

Line Drawing Dimensions
View
Product Properties
Size/Diameter
425 mm
Rating
Non Pressure
Primary Material
Ductile Iron
Joint Type
RRJ
Colour
Galvanised Silver
Number of Parts
2
Load Class
Class D
Markings
Iplex, EziPit Vacuum Cap, DN425, GME300S42C, DI, Date of Manufacture, AS3996, Class B, 21 kg, Batch Code, Foundry Identification Code, Warning 'Live sewer, do not enter
Mechanical Properties
Density - Specific Gravity
7.1
kg/m3
Poissons Ratio
0.28
Thermal Properties
Coefficient of Thermal Expansion
1.1 x 10-5 / o C
Dimensions
Size/Diameter
425 mm
Weight
22.0 kg
Clear Opening - W x L
300 mm
Standards & Accreditations
Product Standard
WSA137
