TNGPLUG90L200

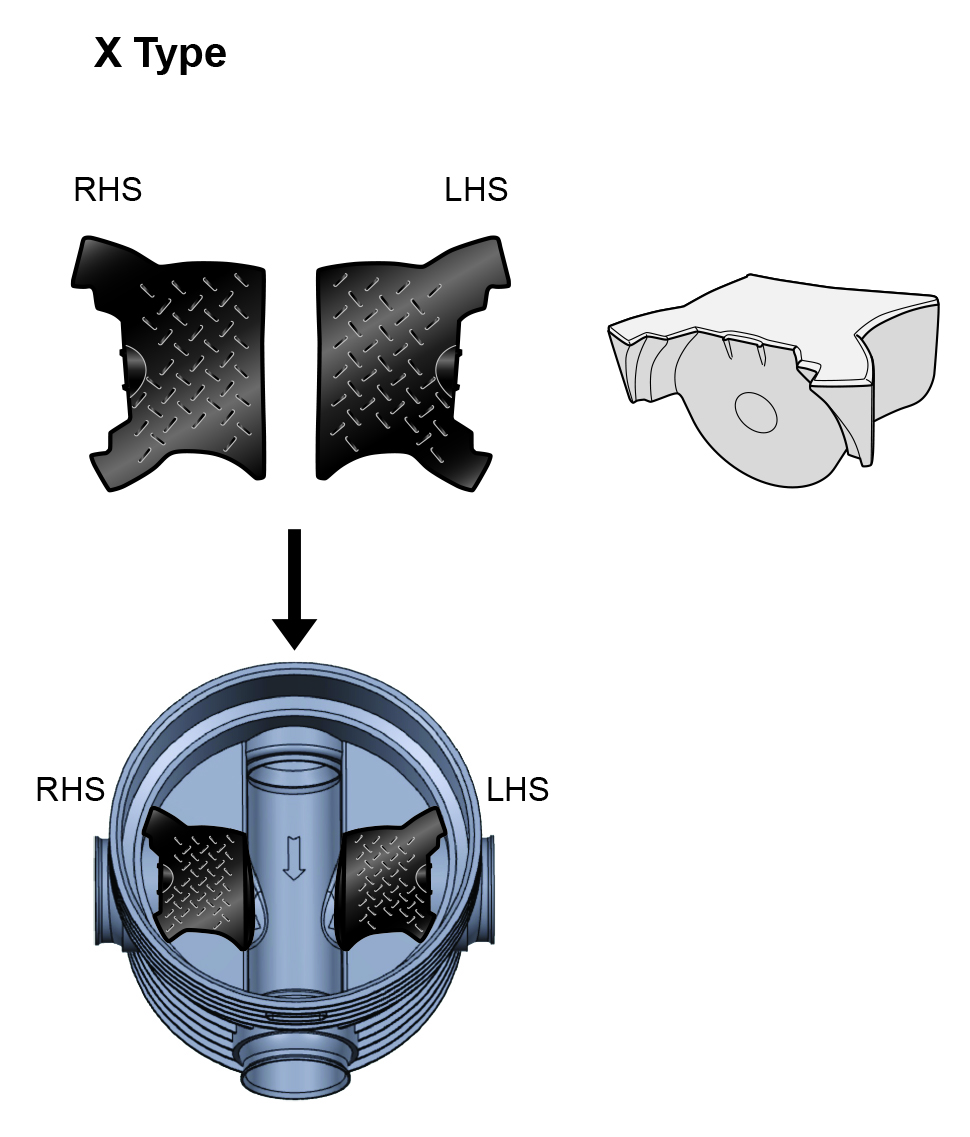

EziPit® 1000 MH PP Inlet Plug x 90° DN200 LHS

Download Product Sheet

Overview Product Properties Mechanical Properties Thermal Properties Dimensions Standards & Accreditations

Overview

Supports internal drop arrangements for flexible pit configurations.
Purpose-designed for X Bases to ensure seamless integration.
Maintains hydraulic efficiency through optimised flow paths.
Increases benching area to improve flow performance.
Prevents solids build-up in unused side channels, reducing maintenance.

Product Data Sheet View

Product Properties

Size/Diameter 200 mm

Primary Material Polypropylene

Colour Black

Allowable Operating Temperature - Degrees Up to 50 oC, rerating is applied > 20 oC

Markings WAVIN, TEGRA1000, PLUG, 200 LHS, PP, Date of Manufacture, Batch and Identity Codes, EN13598-2, TNGPLUG90L200

Mechanical Properties

Density - Specific Gravity 0.9 kg/m³

Poissons Ratio 0.45

Thermal Properties

Coefficient of Thermal Expansion 15 x 10-5 / o C

Dimensions

Size/Diameter 200 mm

Weight 1.5 kg

Standards & Accreditations

Product Standard WSA137
