Overview

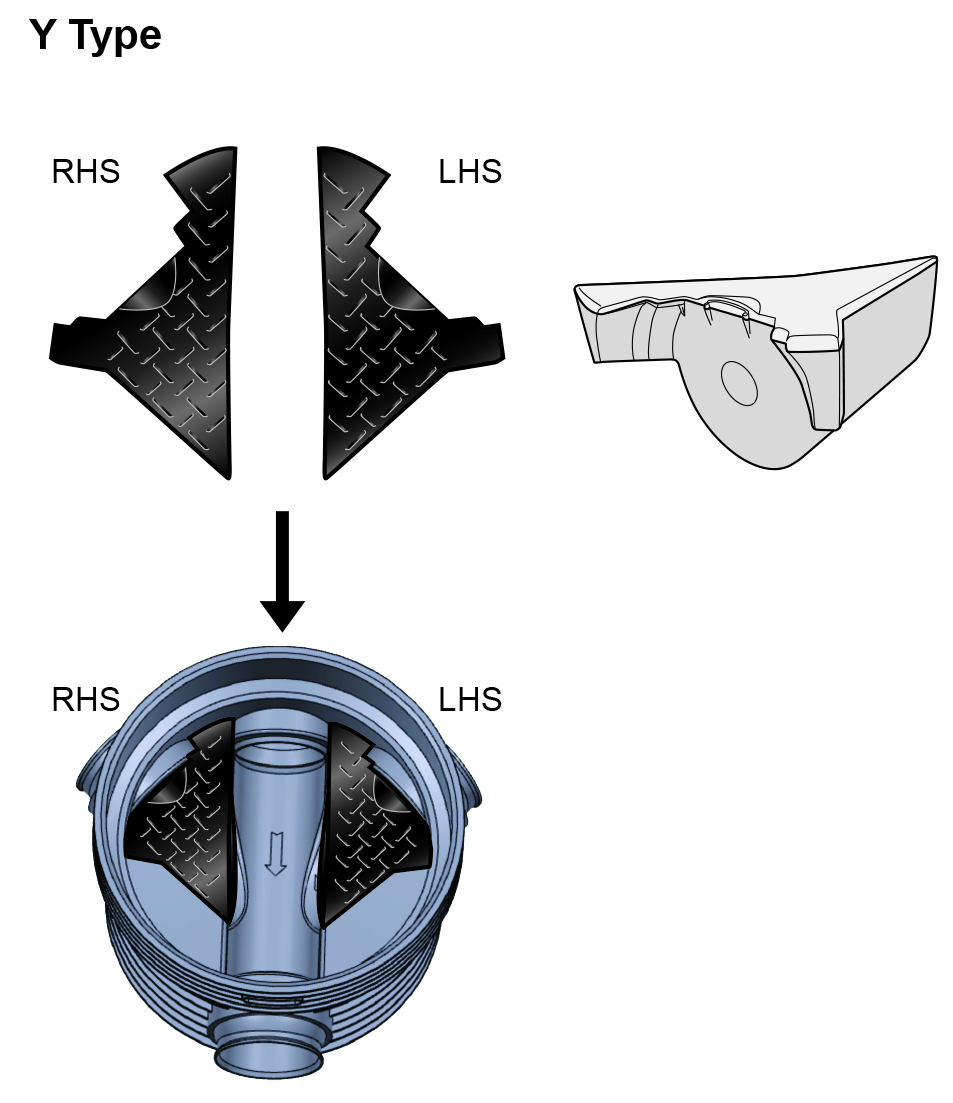

- Supports internal drop arrangements for flexible pit configurations.
- Purpose-designed for X Bases to ensure seamless integration.
- Maintains hydraulic efficiency through optimised flow paths.
- Increases benching area to improve flow performance.
- Prevents solids build-up in unused side channels, reducing maintenance.
Product Data Sheet
View
Product Properties
Size/Diameter
200 mm
Primary Material
Polypropylene
Colour
Black
Allowable Operating Temperature - Degrees
Up to 50 oC, rerating is applied > 20 oC
Markings
WAVIN, TEGRA1000, PLUG, 200 RHS, PP, Date of Manufacture, Batch and Identity Codes, EN13598-2, TNGPLUG45R200
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Poissons Ratio
0.45
Thermal Properties
Coefficient of Thermal Expansion
15 x 10-5 / o C
Dimensions
Size/Diameter
200 mm
Weight
1.6 kg
Standards & Accreditations
Product Standard
WSA137
