TNGUE1000225BU

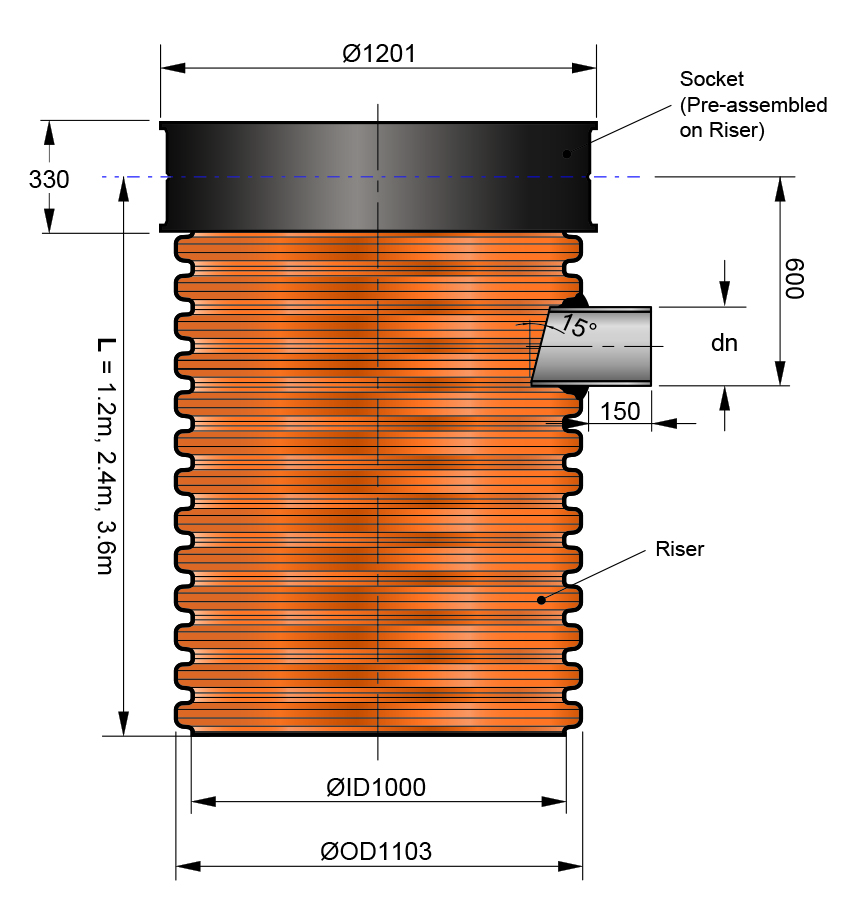

EziPit® PP 1000 Riser Coupling x 2400 mm x dn225 (250 OD) PP Spigot Branch (External drop) PL x RRJ
Quick Menu
Overview
- Easy PVC drop pipe assembly for fast installation.
- Watertight welded connections deliver reliable performance.
- RRJ flexibility accommodates movement and alignment variations.
- Durable design supports long-term system integrity.
- Engineered for secure, leak-free operation.
Additional Information
Requires 1 rubber rings seal GERSEW1000
Product Data Sheet
View
Product Properties
Size/Diameter
1000 mm
Rating
Non Pressure
Length
2.4 m
Primary Material
Other
Joint Type
RRJ
Colour
Grey/Black
Allowable Operating Temperature - Degrees
Up to 50 oC, rerating is applied > 20 oC
Markings
Iplex, EziPit, Riser Junction, External DN1000 x dn225, PP, Date of Manufacture, 2400 mm, TNGUE1000225BU FAB
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Yield Stress
31 MPa
Poissons Ratio
0.45
Thermal Properties
Coefficient of Thermal Expansion
15 x 10-5 / o C
Dimensions
Size/Diameter
1000 mm
Weight
107.2 kg
Standards & Accreditations
Product Standard
WSA137
