TNGUE1000150AS
EziPit® PP 1000 Riser Coupling x 1200 mm x dn150 (160 OD) PP Spigot Branch (External drop) PL x RRJ
Quick Menu
Overview
- Easy PVC drop pipe assembly for fast installation.
- Watertight welded connections deliver reliable performance.
- RRJ flexibility accommodates movement and alignment variations.
- Durable design supports long-term system integrity.
- Engineered for secure, leak-free operation.
Additional Information
Requires 1 rubber rings seal GERSEW1000
Product Data Sheet
View

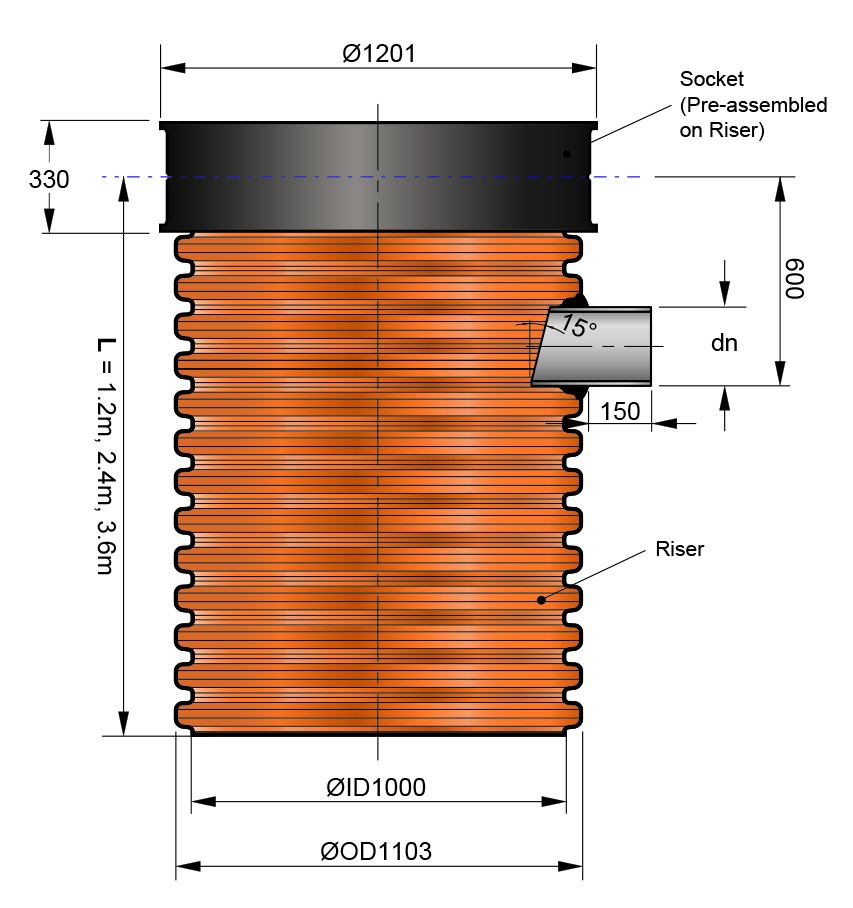

Line Drawing Dimensions
View
Product Properties
Size/Diameter
1000 mm
Rating
Non Pressure
Length
1.2 m
Primary Material
Other
Joint Type
RRJ
Colour
Grey/Black
Allowable Operating Temperature - Degrees
Up to 50 oC, rerating is applied > 20 oC
Markings
Iplex, EziPit, Riser Junction, External DN1000 x dn150, PP, Date of Manufacture, 1200 mm, TNGUE1000150AS FAB
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Yield Stress
31 MPa
Poissons Ratio
0.45
Thermal Properties
Coefficient of Thermal Expansion
15 x 10-5 / o C
Dimensions
Size/Diameter
1000 mm
Weight
70.75 kg
Standards & Accreditations
Product Standard
WSA137
