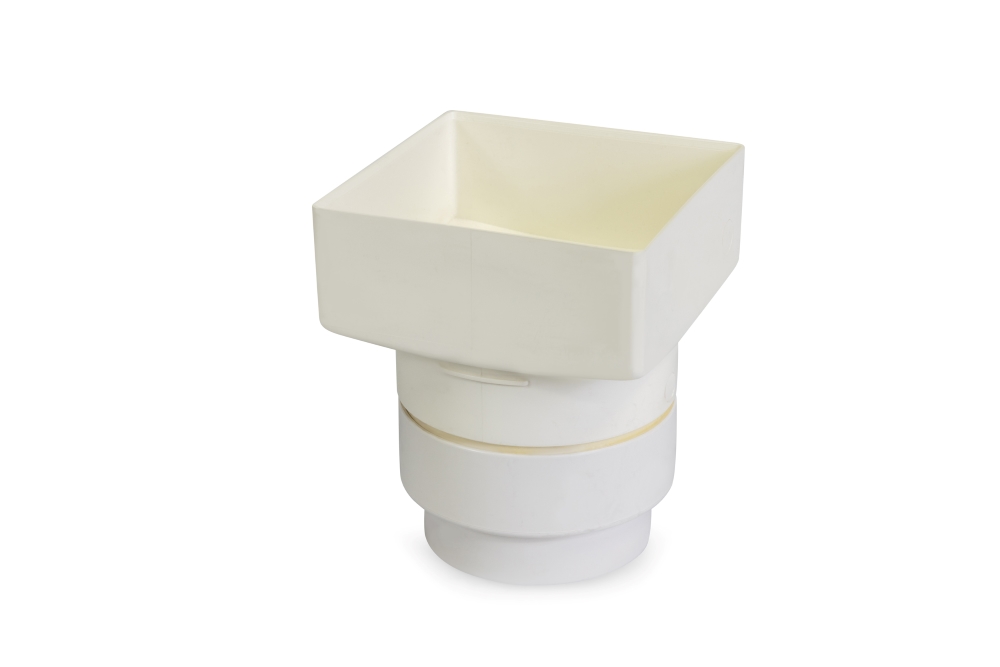

DN75 x DN100 x DN100 Stormwater PVC-U Square Adaptor SWJ
W160751010
Overview
Product Properties
Size/Diameter
75MM
Rating
SN2
Primary Material
PVC
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
60
Average Number of Joints per Litre - Iplex Primer
180
Cure Time for Solvent Weld Joints
24 hours
Unprotected UV Exposed
2 Years
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
151.25MPa
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa
Thermal Properties
Coefficient of Thermal Expansion
7 × 10⁻⁵/°C
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
75°C
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Spread of Flame
0
Fire Index - Heat Evolved
1

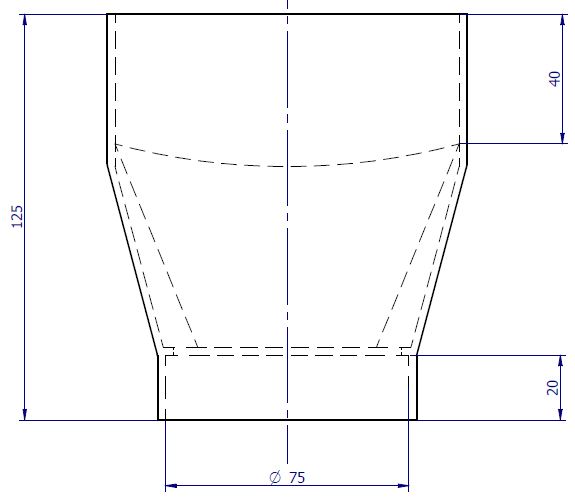

Dimensions
Size/Diameter
75MM
Weight
0.15 kg
Carton Quantity
75
Carton Weight
11.47kg
Wall Thickness
1.6mm
Socket Depth
20mm
Standards & Accreditations
Product Standard
AS/NZS 1254
Warranty
1 Year
