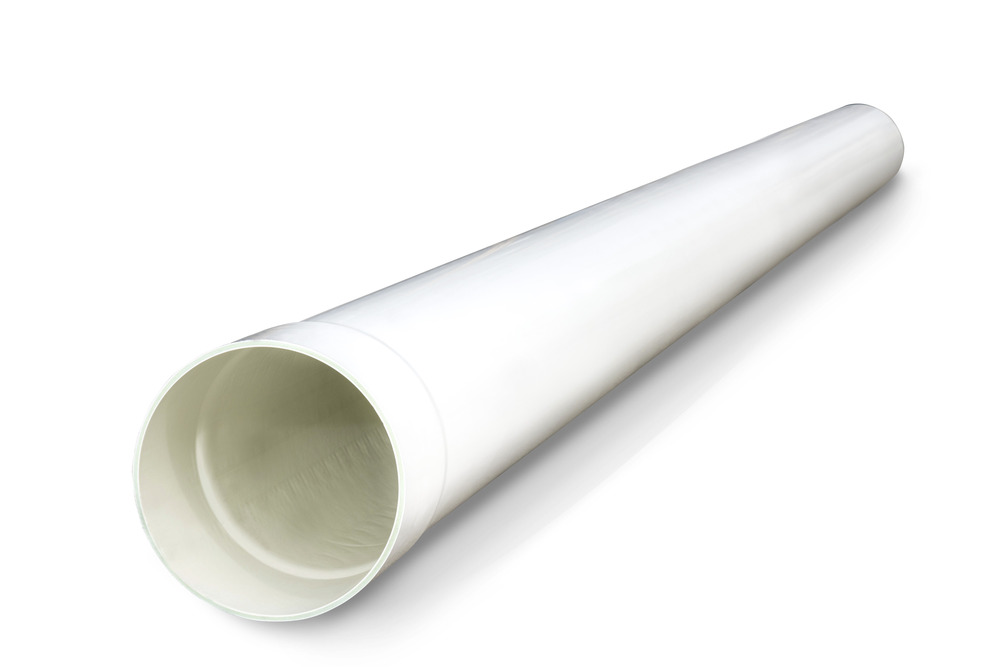

Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Tree root intrusion resistant
Additional Information
For larger size fittings refer to Iplex DWV range
Product Data Sheet
View
CAD PDF
View

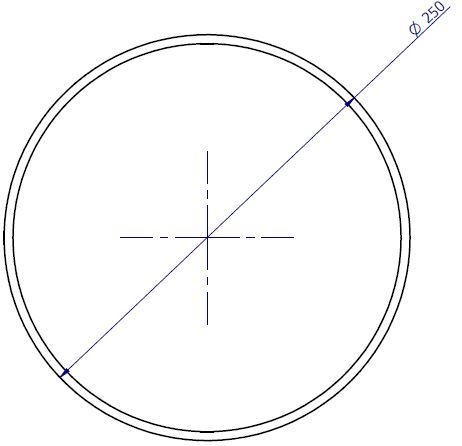

Line Drawing Dimensions
View
Product Properties
Size/Diameter
225 mm
Rating
SN2
Length
6.0 m
Primary Material
PVC
Joint Type
SWJ
Colour
White
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
6
Average Number of Joints per Litre - Iplex Primer
18
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Minimum Radius of Curvature
67.5 m
Socket Deflection
0
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 years yr
Maximum Support Spacing of Pipe Graded
1.5 m
Maximum Support Spacing of Pipe Vertical
3.00 m (Reference AS/NZS 2033, applicable to above ground installations)
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52 MPa
Yield Strain
176MPa
Compressive Strength
66 MPa
Tensile Modulus
3200MPa
Hardness Shore D
85
Poissons Ratio
0.38
Design Stress
12.3MPa
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa
Thermal Properties
Coefficient of Thermal Expansion
7 × 10⁻⁵/°C
Thermal Conductivity
0.38 W·m⁻¹·K⁻¹
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
75°C
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Spread of Flame
0
Fire Index - Heat Evolved
1
Dimensions
Size/Diameter
225 mm
Weight
34
Crate Quantity
12
Crate Weight
408 kg
Wall Thickness
5.5 mm
Socket Length
100 mm
Socket Mouth Diameter
250.9 mm
Socket Root Diameter
249.6 mm
Wall Skin Thickness
0.5 mm
Chamfer Length
3.0 mm
Standards & Accreditations
Product Standard
AS/NZS 1254 'PVC-U pipes and fittings for stormwater and surface water applications'
Environmental Accreditation
Best Environmental Practice PVC - BEP PVC Certificate No. BEP-PVC 0037
Warranty
1 Year
