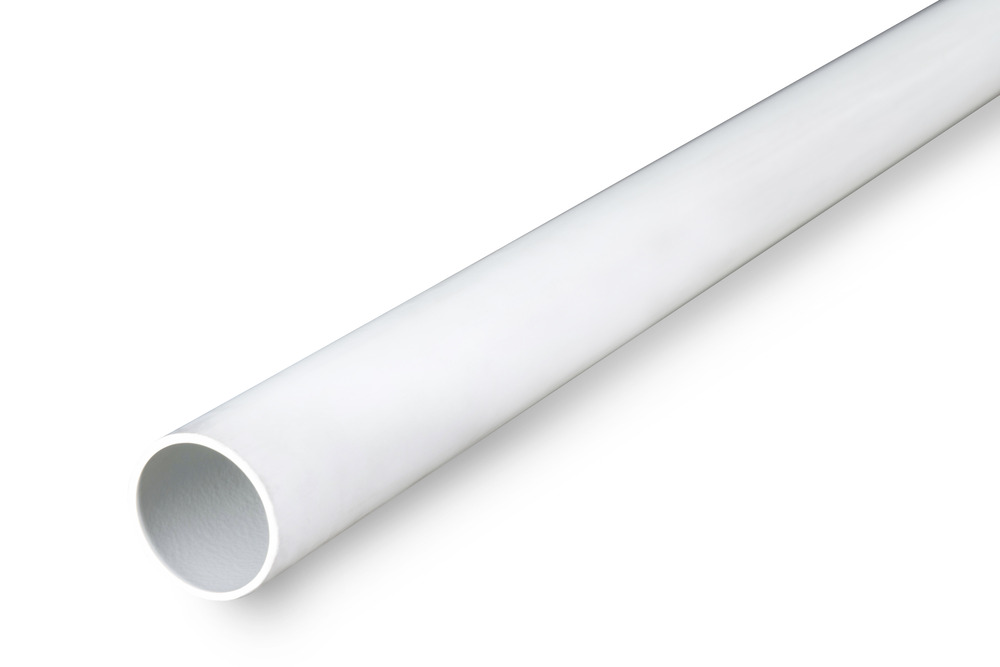

DN50 x 3m DWV PVC-U Pipe SWJ
DPSH50C
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Properties
Size/Diameter
50MM
Length
3.0M
Primary Material
PVC
Joint Type
Plain end
Colour
Light Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
76
Average Number of Joints per Litre - Iplex Primer
228
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Minimum Radius of Curvature
15m
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.0m
Maximum Support Spacing of Pipe Vertical
2.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
0.055
Yield Stress
151.25MPa
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa
Thermal Properties
Coefficient of Thermal Expansion
7 × 10⁻⁵/°C
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
75°C
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Spread of Flame
0
Fire Index - Heat Evolved
1
Dimensions
Size/Diameter
50MM
Weight
1.84 kg
Crate Quantity
140
Crate Weight
215.16kg
Wall Thickness
2.7mm
Standards & Accreditations
Product Standard
AS/NZS 1260
Product Approvals and Appraisals
WaterMark Certification: WMKA1275
WSSA PA 1625
WSSA PA 1625
Environmental Accreditation
ApprovalMark - Compliance: Certificate No. BEP-PVC 0037
Warranty
1 Year
