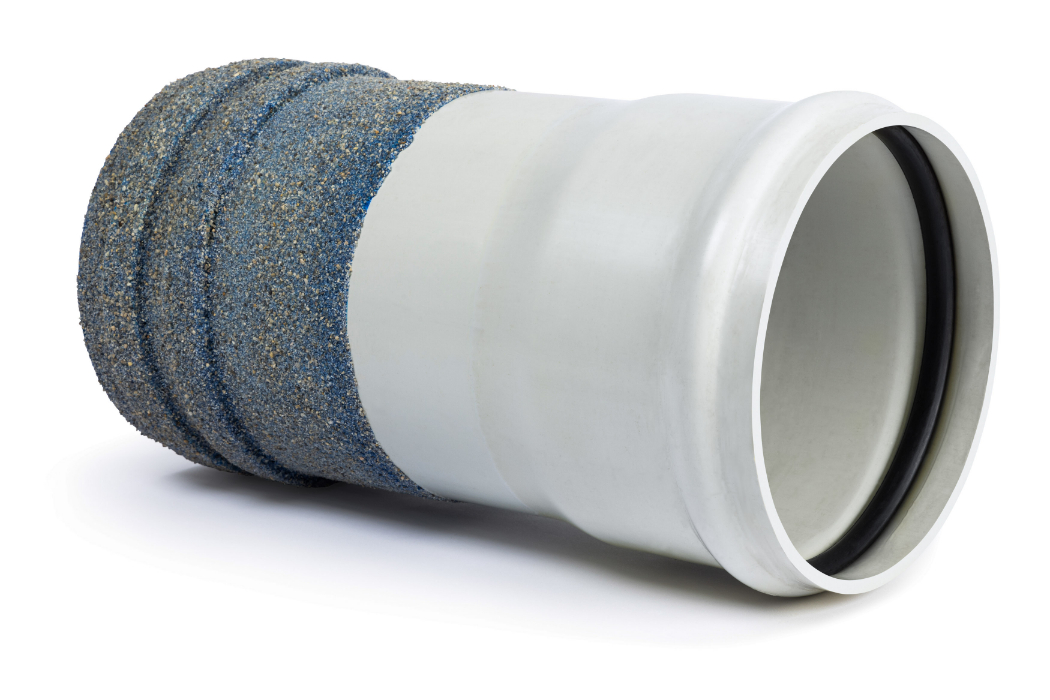

225 EH DWV MH COUP MF X0.5M SANDED CW 1XRRJ W/RING
DR61EHW225
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Properties
Size/Diameter
225MM
Length
0.5M
Primary Material
PVC
Joint Type
RRJ
Rubber Ring Material
EPDM
Colour
White
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Cure Time for Solvent Weld Joints
24 hours
Socket Deflection
1°
Mechanical Properties
Ultimate Tensile Strength
52MPa
Yield Strain
0.055
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Thermal Properties
Coefficient of Thermal Expansion
7 × 10⁻⁵/°C
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
75°C
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Spread of Flame
0
Fire Index - Heat Evolved
1
Dimensions
Size/Diameter
225MM
Standards & Accreditations
Product Standard
AS/NZS 1260 'PVC-U pipes and fittings for drain, waste and vent applications'
Environmental Accreditation
ApprovalMark - Compliance: Certificate No. BEP-PVC 0037
Warranty
1 Year
