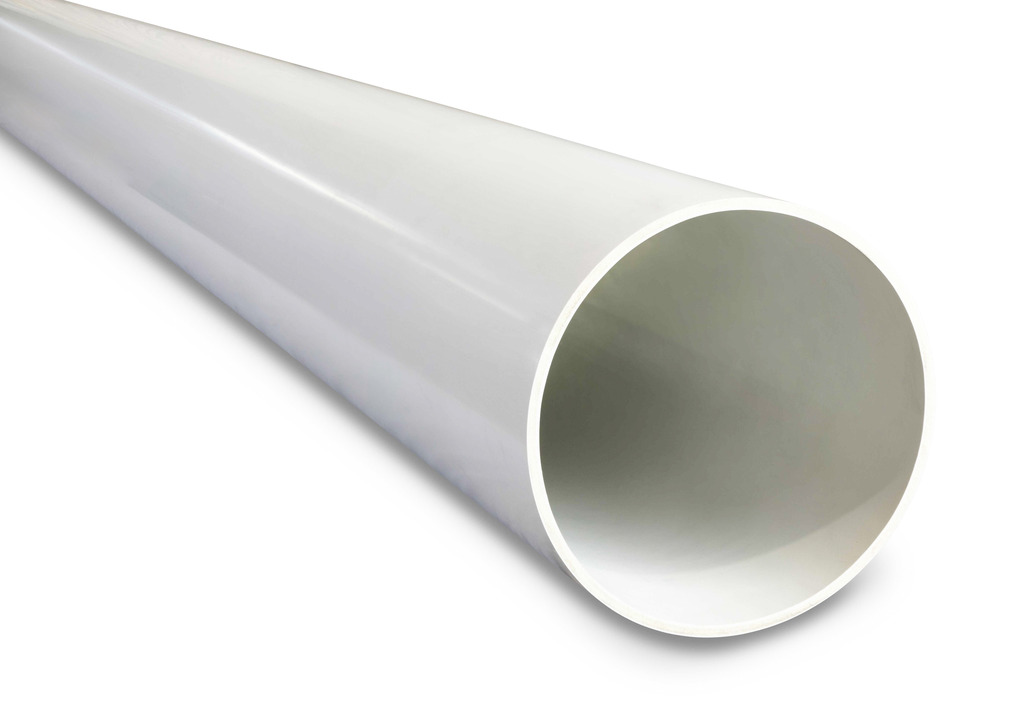

DN150 x 3m SN4 DWV PVC-U Pipe SWJ
DSMH150C
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Properties
Size/Diameter
150MM
Rating
SN4
Length
3.0M
Primary Material
PVC
Joint Type
Solvent Weld Joint
Colour
Light Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
12
Average Number of Joints per Litre - Iplex Primer
36
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Minimum Radius of Curvature
45m
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Mechanical Properties
Density - Specific Gravity
1.47
kg/m3
Ultimate Tensile Strength
52MPa
Yield Strain
0.055
Yield Stress
151.25MPa
Compressive Strength
66MPa
Tensile Modulus
2750MPa
Hardness Shore D
85
Poissons Ratio
0.38
Ring Bending Modulus - 3mins
3200MPa
Ring Bending Modulus - 50yrs
1400MPa
Thermal Properties
Coefficient of Thermal Expansion
7 × 10⁻⁵/°C
Thermal Conductivity
0.138W/m.K
Specific Heat
1047 J/kg/°C
Vicat Softening Temperature
75°C
Flammability
Will not support combustion
Fire Index - Ignitability
8
Fire Index - Smoke Developed
8
Fire Index - Spread of Flame
0
Fire Index - Heat Evolved
1
Dimensions
Size/Diameter
150MM
Weight
8.77 kg
Crate Quantity
33
Crate Weight
289.27kg
Wall Thickness
4.2mm
Socket Length
80
Socket Mouth Diameter
160.6
Socket Root Diameter
159.6
Standards & Accreditations
Product Standard
AS/NZS 1260
Product Approvals and Appraisals
WaterMark Certification: WMKA1275
WSSA PA 1625
WSSA PA 1625
Warranty
1 Year
