SewerMax® PP Pipe SN10 375 x 3 m RRJ Grey with yellow liner

GR10375C

SewerMax® PP Pipe SN10 375 x 3 m RRJ Grey with yellow liner

Enquire Download Product Sheet
Enquire
Overview Product Properties Mechanical Properties Thermal Properties Dimensions Standards & Accreditations

Quick Menu

Overview

  • Australian made
  • Recyclable
  • Low embodied energy
  • Corrosion resistance
  • Abrasion resistance
  • Lightweight
  • Toughness
  • Watertight RRJ
  • Resistance to root intrusion
  • Smooth internal bore
  • Hydraulic performance
Additional Information Requires DN375 Rubber Ring Iplex Code: GERSEW375
Product Data Sheet Artboard View
CAD PDF Artboard View

Product Properties

Size/Diameter 375 mm
Rating Non Pressure
Length 3.0M
Primary Material Polypropylene
Joint Type RRJ
Rubber Ring Material Styrene Butadiene Rubber (SBR)
Colour Grey outer corrugated wall with yellow inner liner
Minimum Cover Depth Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant 14
Allowable Operating Temperature - Degrees Up to 50°C. Re-rating is applied for temperatures > 20°C
Socket Deflection up to 2°
Maximum Diametric Deflection - 50yrs 0.075
Unprotected UV Exposed 2 years yr
Markings Iplex Pipelines, DN375, SN10, PP, Date of Manufacture, SewerMax® x 3 m RRJ, GR10375C

Mechanical Properties

Density - Specific Gravity 0.9 kg/m3
Yield Strain 0.06
Yield Stress 28MPa
Tensile Modulus 31 MPa
Hardness Shore D 60
Poissons Ratio 0.45
Ring Bending Modulus - 3mins 1300 MPa
Ring Bending Modulus - 50yrs 342 MPa

Thermal Properties

Coefficient of Thermal Expansion 15 x 10⁻⁵ / ℃
Thermal Conductivity 0.22W/m.K
Specific Heat 1920 J/kg/°C
Vicat Softening Temperature 95°C
Flammability Flammable

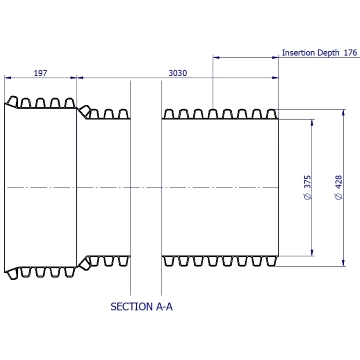

Dimensions

Size/Diameter 375 mm
Weight 33.6 kg
Crate Quantity 6
Crate Weight 129 kg or 193.5 kg (32.25 kg per crate)
Wall Thickness 2.4 mm
Socket Depth 176 mm
Max Socket Nominal OD 502 mm
Witness Mark Detail 5th Rib
Socket Length 183
SewerMax® PP Pipe SN10 375 x 3 m RRJ Grey with yellow liner

Standards & Accreditations

Product Standard AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
Product Approvals and Appraisals StandardsMark Certification SMKP20603
Warranty 1 Year
