Overview
- Allows 90° branch connection
- Polypropylene
- Compatible with BlackMax® pipe
- RRJ
- Lightweight
- Corrosion resistant
- Provides complete plastic system with BlackMax® pipes
Additional Information
Requires 3 x DN600 BlackMax® Rubber Rings Iplex Code: GERSEW600
Product Data Sheet
View
CAD PDF
View

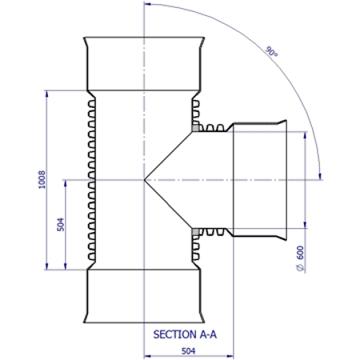

Line Drawing Dimensions
View
Product Properties
Size/Diameter
600 mm
Rating
Non Pressure
Degree
90°
Primary Material
Polypropylene
Joint Type
RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with yellow internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre - Iplex Lubricant
14
Allowable Operating Temperature - Degrees
Up to 50°C. Re-rating is applied for temperatures > 20°C
Socket Deflection
up to 2°
Markings
Iplex > BlackMax® > Equal Tee > RRJ > DN600 x 90° > PP > Date of Manufacture > GR2460090
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Dimensions
Size/Diameter
600 mm
Weight
61 kg
Wall Thickness
3.5 mm
Socket Depth
296 mm
Standards & Accreditations
Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
