GR8600C
BlackMax® PP Pipe SN8 600 x 2.7 m RRJ Black with yellow liner
Quick Menu
Overview
- Australian made
- Recyclable
- Low embodied energy
- Corrosion resistance
- Abrasion resistance
- Lightweight
- Toughness
- Watertight RRJ
- Resistance to root intrusion
- Smooth internal bore
- Hydraulic performance
Additional Information
Requires DN600 Rubber Ring Iplex Code: GERSEW600
Product Data Sheet
View
CAD PDF
View

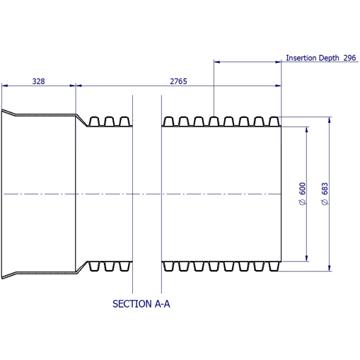

Line Drawing Dimensions
View
Product Properties
Size/Diameter
600 mm
Rating
Non Pressure
Length
2.8 m
Primary Material
Polypropylene
Joint Type
RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black with yellow internal liner
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
14
Allowable Operating Temperature - Degrees
Up to 50°C. Re-rating is applied for temperatures > 20°C
Socket Deflection
up to 2°
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 years yr
Maximum Support Spacing of Pipe Graded
3 m
Maximum Support Spacing of Pipe Vertical
6.00 m (Reference AS/NZS 2033, applicable to above ground installations)
Markings
Iplex Pipelines, DN600, SN8, PP, Date of Manufacture, BlackMax® x 2.77 m, GR8600C
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Yield Strain
0.06
Tensile Modulus
31 MPa
Hardness Shore D
60
Poissons Ratio
0.45
Ring Bending Modulus - 3mins
1300 MPa
Ring Bending Modulus - 50yrs
342 MPa
Thermal Properties
Coefficient of Thermal Expansion
15 x 10⁻⁵ / ℃
Thermal Conductivity
0.22 W·m⁻¹·K⁻¹
Specific Heat
1920 J/kg/°C
Vicat Softening Temperature
95°C
Flammability
Flammable
Dimensions
Size/Diameter
600 mm
Weight
59.7 kg
Crate Quantity
3
Crate Weight
179.1 kg
Wall Thickness
3.5 mm
Socket Depth
296 mm
Witness Mark Detail
5th Rib
Socket Length
288 mm
Standards & Accreditations
Product Standard
AS/NZS 5065
Product Approvals and Appraisals
StandardsMark Certification SMKP20603
Warranty
I Year
