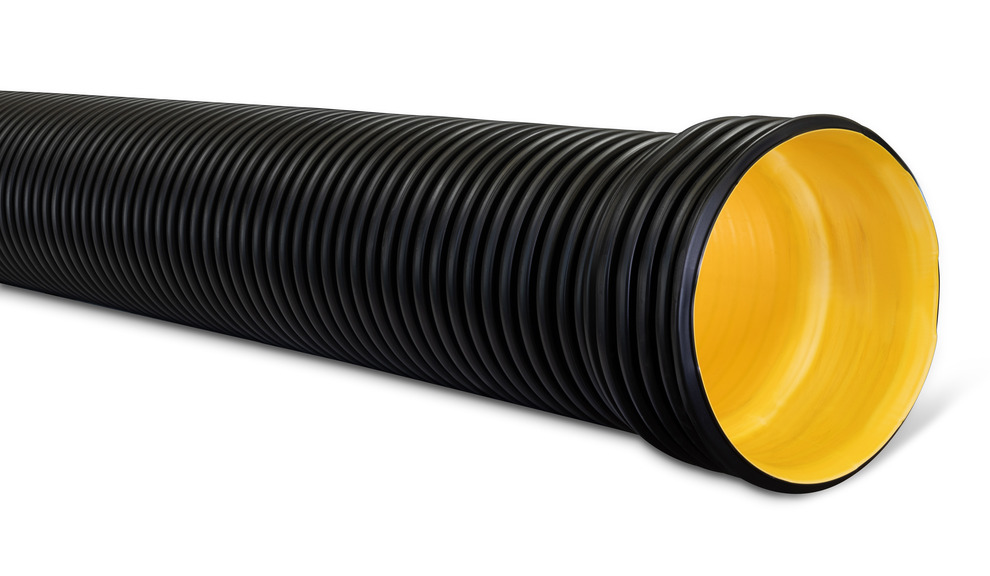

BlackMax® PP Pipe SN8 525 x 6 m RRJ Black with yellow liner

GR8525

BlackMax® PP Pipe SN8 525 x 6 m RRJ Black with yellow liner

Enquire Download Product Sheet
Enquire
Overview Product Properties Mechanical Properties Thermal Properties Dimensions Standards & Accreditations

Quick Menu

Overview

  • Australian made
  • Recyclable
  • Low embodied energy
  • Corrosion resistance
  • Abrasion resistance
  • Lightweight
  • Toughness
  • Watertight RRJ
  • Resistance to root intrusion
  • Smooth internal bore
  • Hydraulic performance
Additional Information Requires DN525 Rubber Ring Iplex Code: GERSEW525
Product Data Sheet Artboard View
CAD PDF Artboard View

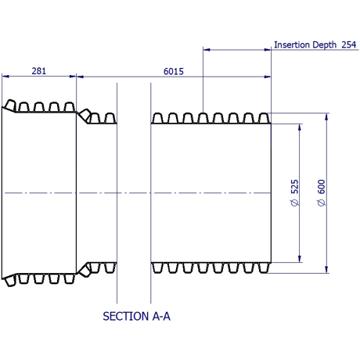

Line Drawing Dimensions Artboard View

Product Properties

Size/Diameter 525 mm
Rating Non Pressure
Length 6.0 m
Primary Material Polypropylene
Joint Type RRJ
Rubber Ring Material Styrene Butadiene Rubber (SBR)
Colour Black with yellow internal liner
Minimum Cover Depth Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant 16
Allowable Operating Temperature - Degrees Up to 50°C. Re-rating is applied for temperatures > 20°C
Minimum Radius of Curvature 86 mm
Socket Deflection up to 2°
Maximum Diametric Deflection - 50yrs 0.075
Unprotected UV Exposed 2 years yr
Maximum Support Spacing of Pipe Graded 2.75 m
Maximum Support Spacing of Pipe Vertical 5.50 m (Reference AS/NZS 2033, applicable to above ground installations)
Markings Iplex Pipelines, DN525, SN8, PP, Date of Manufacture, BlackMax® x 6 m, GR8525

Mechanical Properties

Density - Specific Gravity 0.9 kg/m3
Yield Strain 8%
Yield Stress 31 MPa
Tensile Modulus 31 MPa
Hardness Shore D 60
Poissons Ratio 0.45
Ring Bending Modulus - 3mins 1300 MPa
Ring Bending Modulus - 50yrs 342 MPa

Thermal Properties

Coefficient of Thermal Expansion 15 x 10⁻⁵ / ℃
Thermal Conductivity 0.22 W·m⁻¹·K⁻¹
Specific Heat 1700 J/kg/°C
Vicat Softening Temperature 157°C
Flammability Flammable

Dimensions

Size/Diameter 525 mm
Weight 91.8 kg
Crate Quantity 3
Crate Weight 303 kg
Wall Thickness 39.0 mm
Socket Depth 210 mm
Witness Mark Detail 5th Rib
Socket Length 260 mm

Standards & Accreditations

Product Standard AS/NZS 5065 'Polyethylene and polypropylene pipes & fittings for drainage & sewerage applications'
Creep Ratio 3
Warranty I Year
